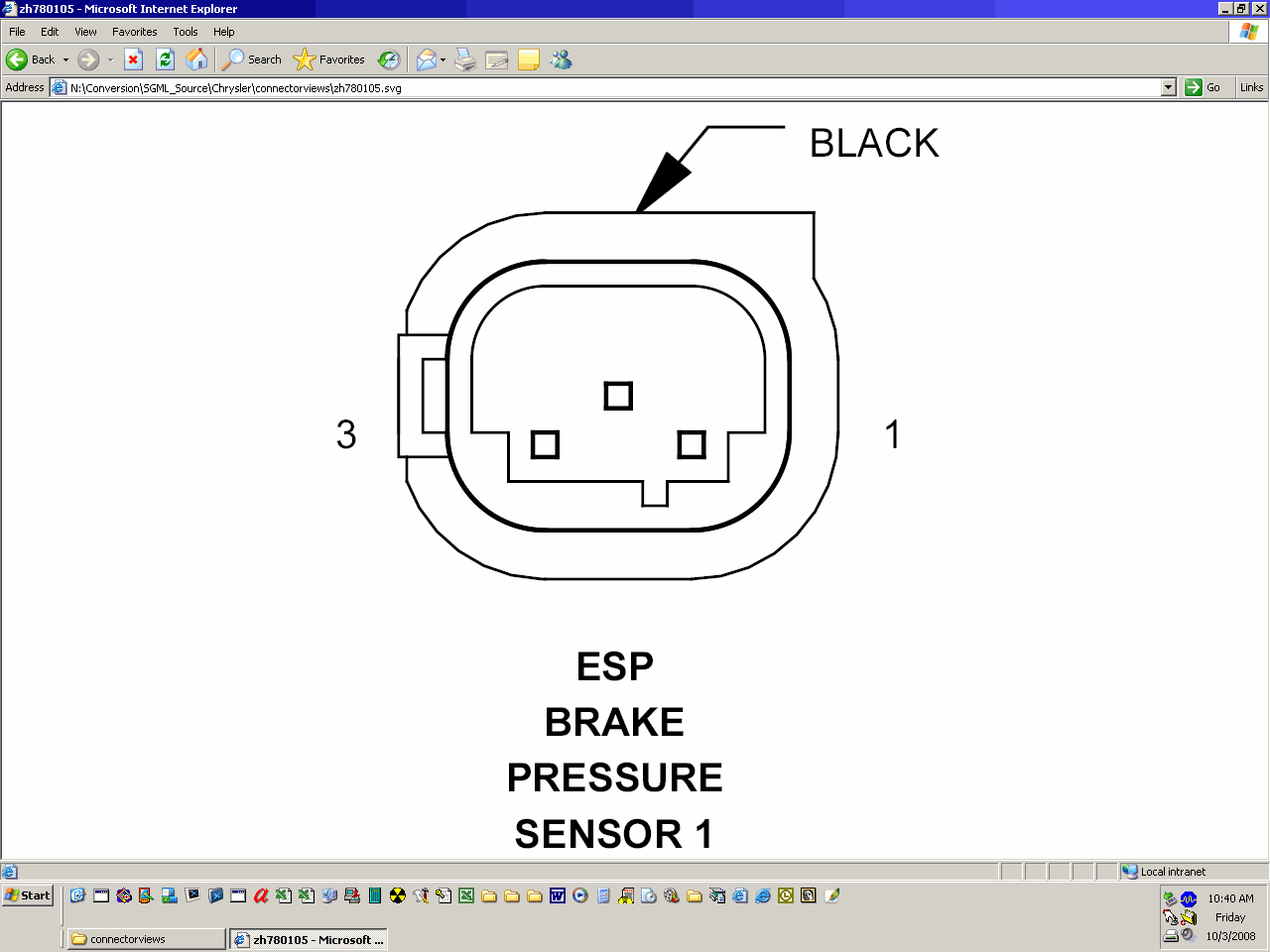

Electronic Stability Program Brake Pressure Sensor 1 Connector End View
ESP BRAKE PRESSURE SENSOR 1 - BLACK 3-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
20BR/BL |
SENSOR GROUND |
| 2 |
20BL/WT |
ESP BRAKE PRESSURE SENSOR 1 SIGNAL |
| 3 |
20BK/RD/WT |
5 VOLT SUPPLY |
