Fuel Level Sensor Connector End View

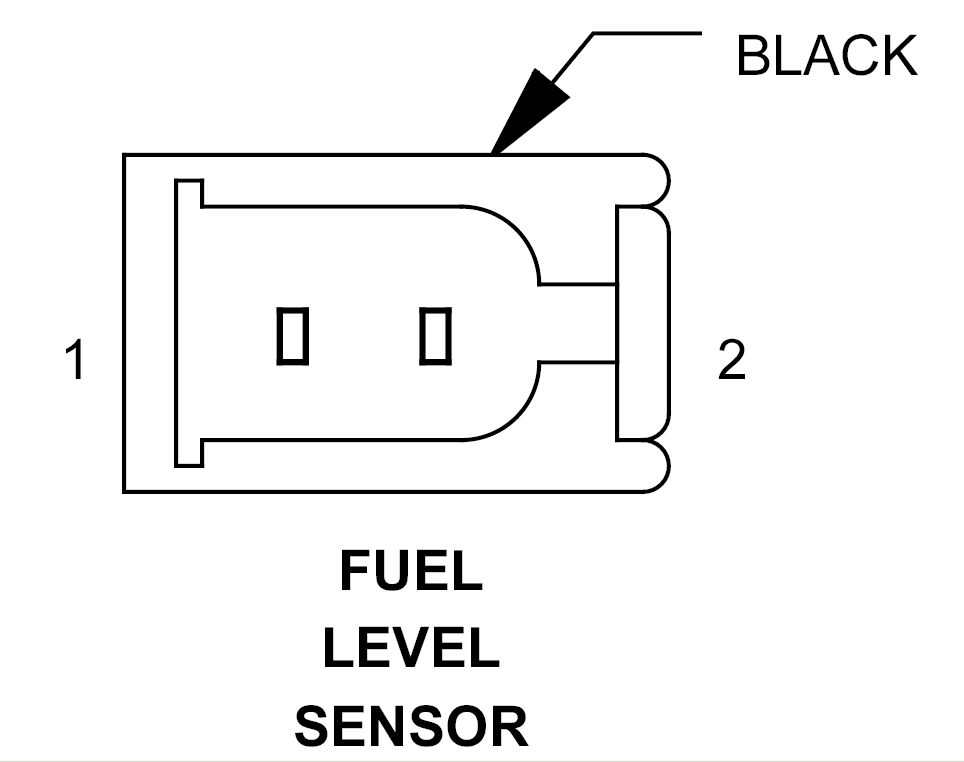

FUEL LEVEL SENSOR - BLACK 2-WAY

GZH780116Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 20BR/GY FUEL LEVEL SENSOR RETURN
2 20BL/BK FUEL LEVEL SENSOR SIGNAL
