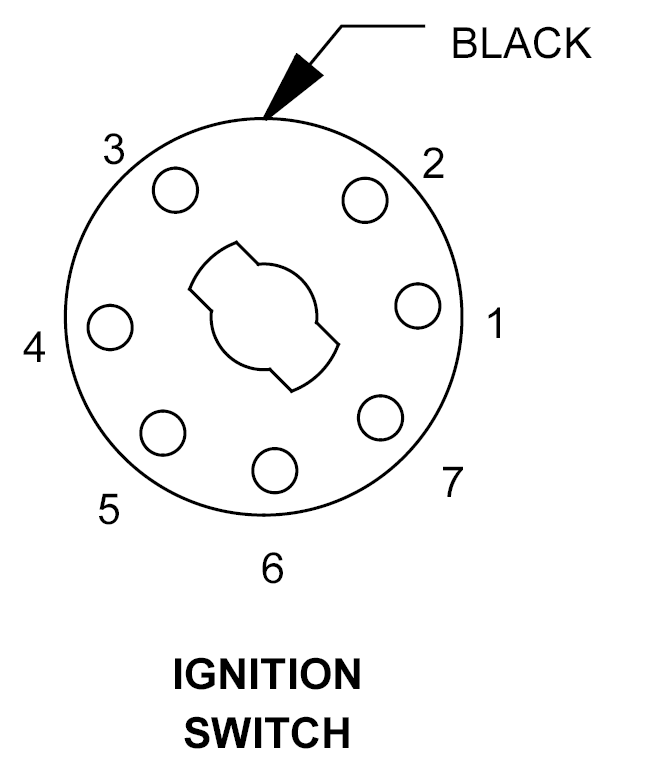

Ignition Switch Connector End View
IGNITION SWITCH - BLACK 7-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
12PK/RD |
FUSED IGNITION SWITCH OUTPUT |
| 2 |
18DG/WT |
FUSED IGNITION SWITCH OUTPUT |
| 3 |
12PK/YL |
FUSED IGNITION SWITCH OUTPUT |
| 4 |
16VT |
FUSED IGNITION SWITCH OUTPUT |
| 5 |
12RD |
FUSED B(+) |
| 6 |
20PK/DG |
FUSED IGNITION SWITCH OUTPUT |
| 7 |
12RD |
FUSED B(+) |
