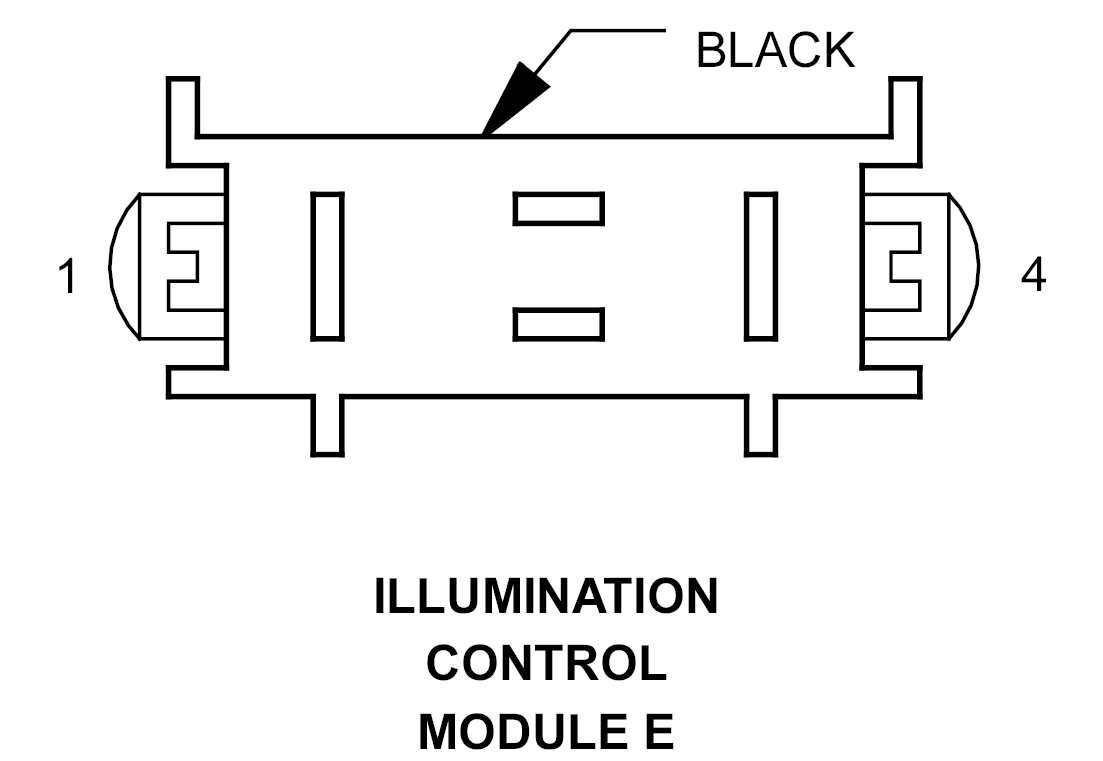

Illumination Control Module E Connector End View

ILLUMINATION CONTROL MODULE E - BLACK 4-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	12RD	FUSED B(+)
2	20DG/VT	PARK BRAKE SWITCH SENSE
3	-	-
4	12PK/RD	FUSED IGNITION SWITCH OUTPUT
