Left Side Impact Sensor Connector End View

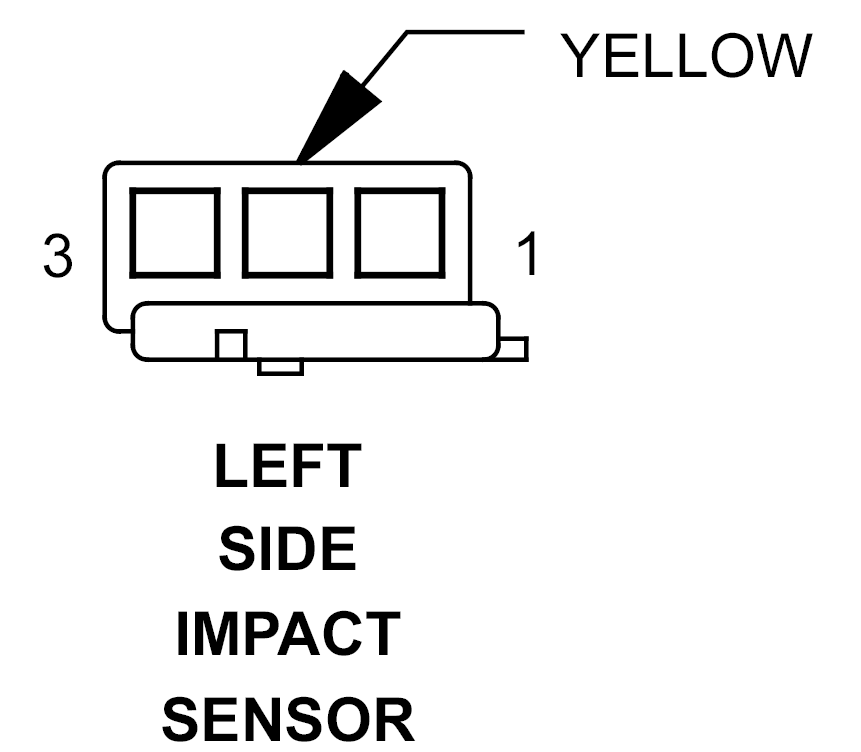

LEFT SIDE IMPACT SENSOR - YELLOW 3-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
20BR
GROUND
2
-
-
3
20BL/YL
LEFT SIDE IMPACT SENSOR SIGNAL
Courtesy of CHRYSLER CORP.
