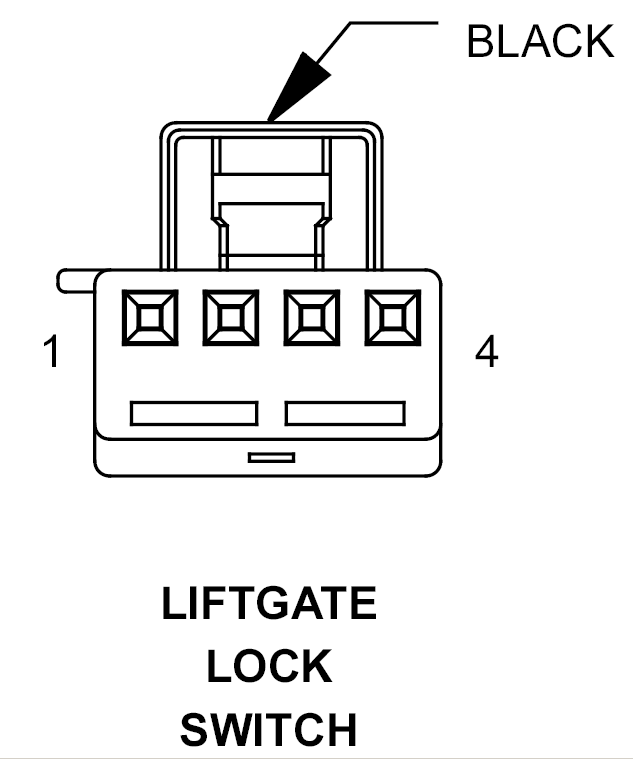

Liftgate Lock Switch Connector End View
LIFTGATE LOCK SWITCH - BLACK 4-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
20BR |
GROUND |
| 2 |
20BR/BL |
LIFTGATE LOCK SWITCH SENSE (UNLOCK) (ZH27) |
| 2 |
20BR/YL |
LIFTGATE LOCK SWITCH SENSE (UNLOCK) (ZH29) |
| 3 |
- |
- |
| 4 |
- |
- |
