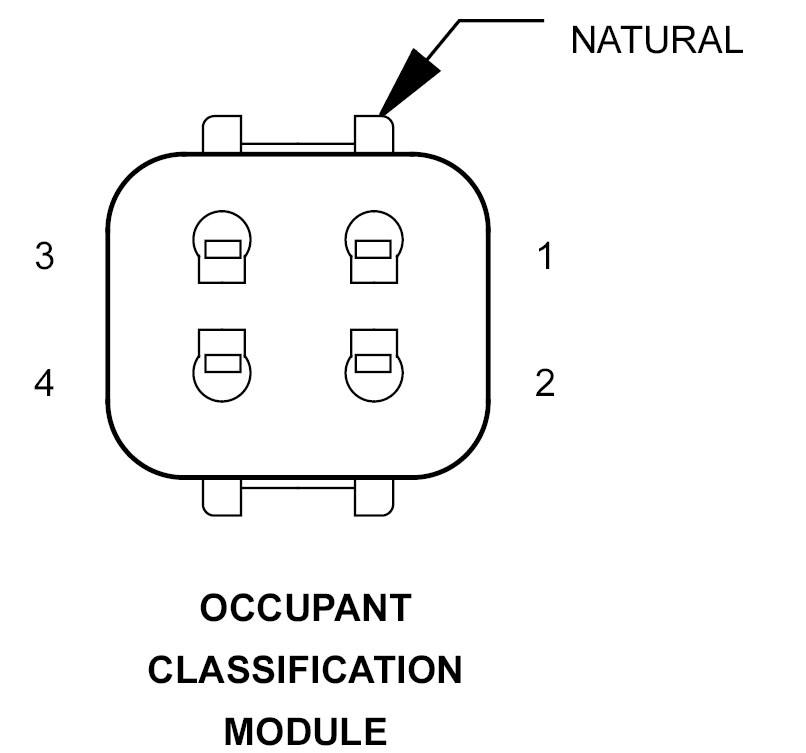

Occupant Classification Module Connector End View
OCCUPANT CLASSIFICATION MODULE - NATURAL 4-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
20RD/YL |
FUSED B(+) |
| 2 |
20BR |
GROUND |
| 3 |
20WT/DG |
CAN INTERIOR BUS (125K) (+) |
| 4 |
20BK/DG |
CAN INTERIOR BUS (125K) (-) |
