Pulse Module A Connector End View

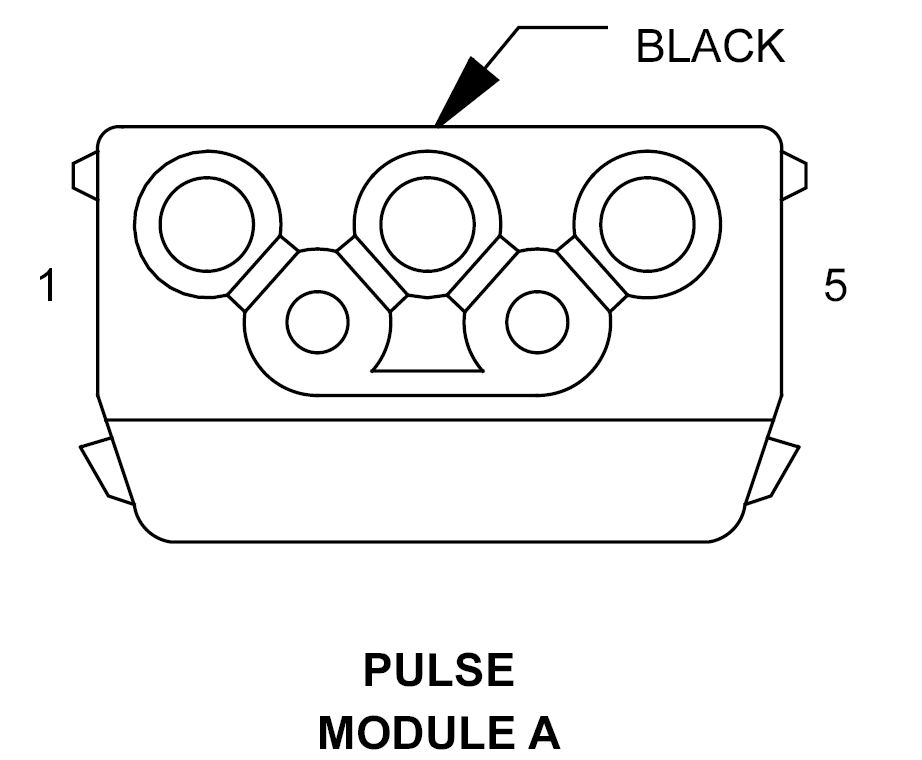

PULSE MODULE A - BLACK 5-WAY

GZH780194Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 12BK FUSED B(+)
2 20PK/RD SENSOR GROUND
3 - -
4 - -
5 12BR GROUND
