Pulse Module B Connector End View

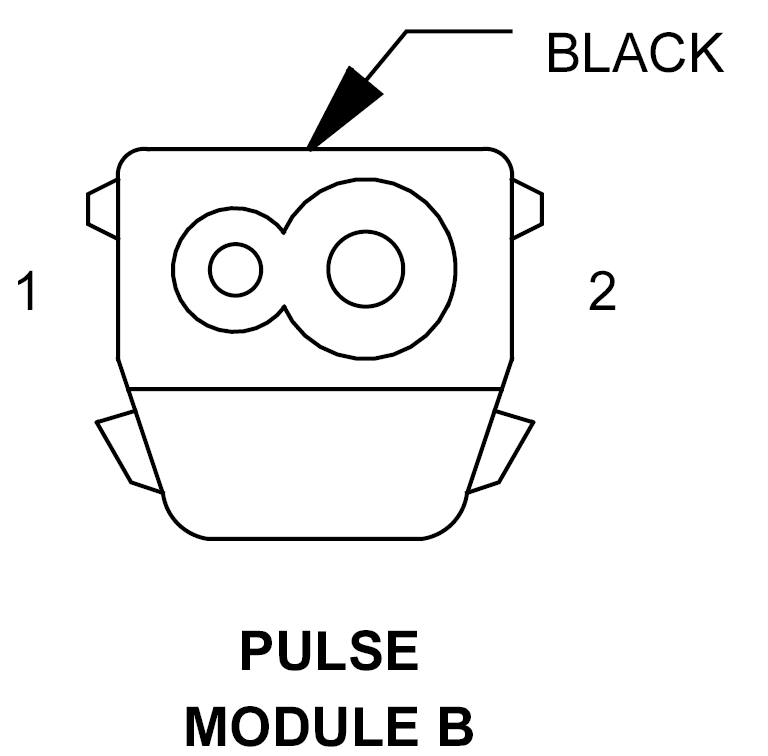

PULSE MODULE B - BLACK 2-WAY

GZH780195Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 16VT FUSED IGNITION SWITCH OUTPUT (A/T)
1 20VT CLUTCH INTERLOCK SWITCH OUTPUT (M/T)
2 14PK/RD FUSED IGNITION SWITCH OUTPUT
