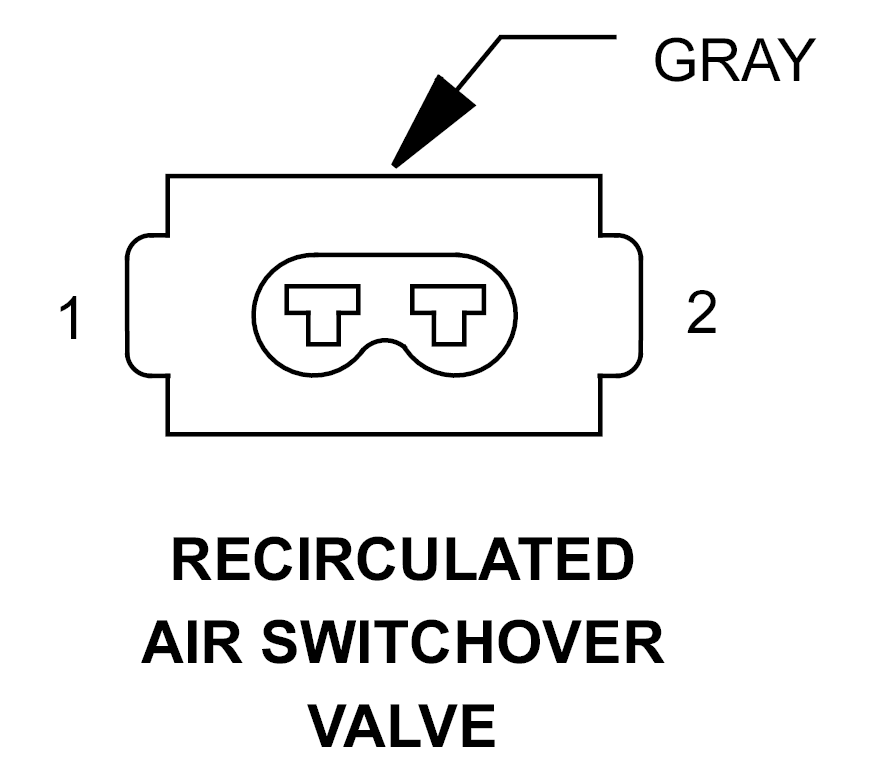

Recirculated Air Switchover Valve Connector End View

RECIRCULATED AIR SWITCHOVER VALVE - GRAY 2-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	18BR/YL	RECIRCULATED AIR SWITCHOVER VALVE CONTROL
2	18PK/RD/BL	FUSED IGNITION SWITCH OUTPUT
