Relay Control Module D Connector End View

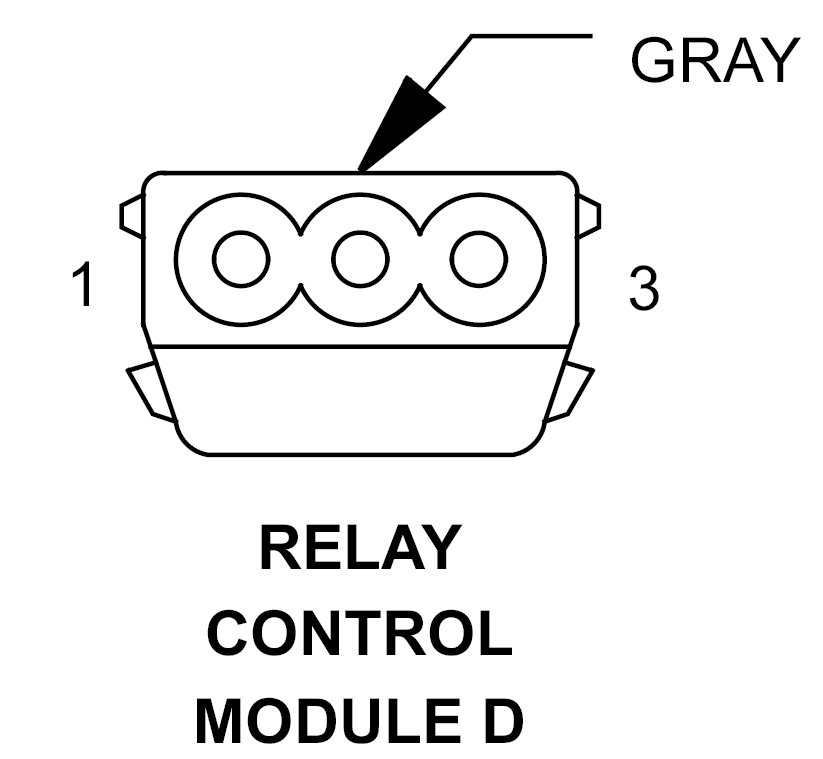

RELAY CONTROL MODULE D - GRAY 3-WAY

GZH780211Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 20YL HORN RELAY CONTROL
2 18PK/RD FUSED IGNITION SWITCH OUTPUT
