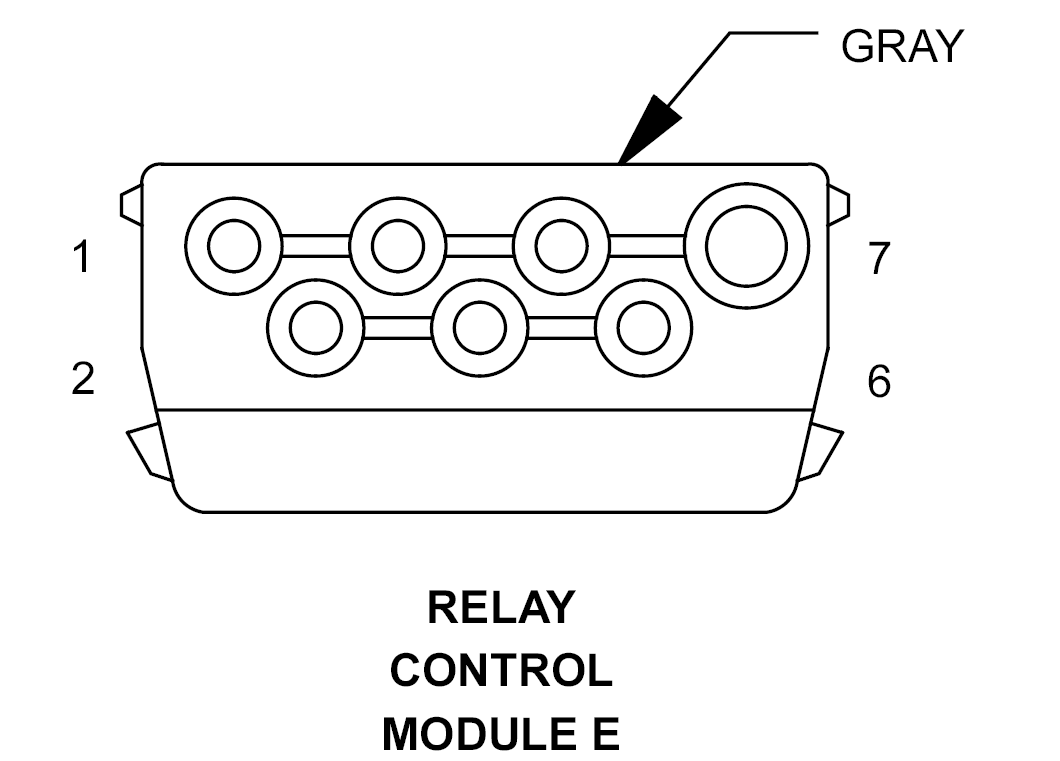

Relay Control Module E Connector End View
RELAY CONTROL MODULE E - GRAY 7-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
16BK/PK |
FUSED HORN RELAY OUTPUT |
| 2 |
20RD/WT |
FUSED IGNITION SWITCH OUTPUT |
| 3 |
18BL/RD |
FUEL PUMP RELAY CONTROL |
| 4 |
18BK/DG |
FUSED B(+) |
| 5 |
16RD/DG |
FUSED ENGINE CONTROL RELAY OUTPUT |
| 6 |
18RD/DG |
FUSED ENGINE CONTROL RELAY OUTPUT |
| 7 |
- |
- |
