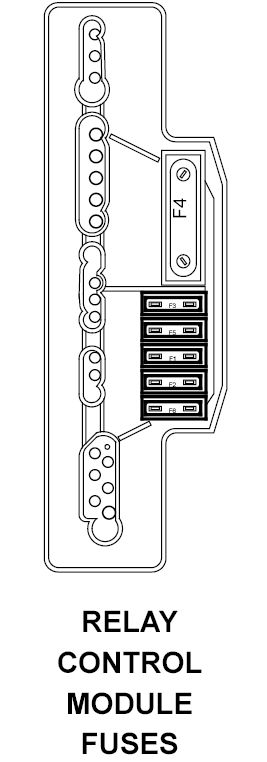

Relay Control Module Fuses Connector End View
RELAY CONTROL MODULE FUSES
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
INTERNAL |
FUSED B(+) |
| 2 |
INTERNAL |
FUSED ENGINE CONTROL RELAY OUTPUT |
| 3 |
INTERNAL |
FUSED ENGINE CONTROL RELAY OUTPUT |
| 4 |
INTERNAL |
FUSED B(+) |
| 5 |
INTERNAL |
FUSED B(+) |
| 6 |
INTERNAL |
FUSED B(+) |
