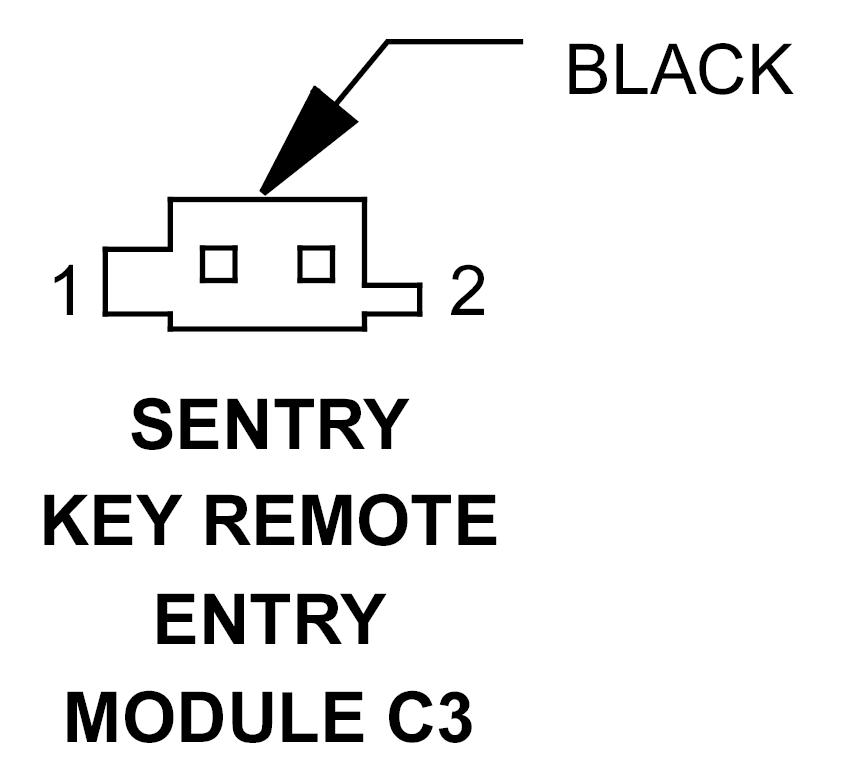

Sentry Key Remote Entry Module Connector End View (C3)
SENTRY KEY REMOTE ENTRY MODULE C3 - BLACK 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
16BK
SENTRY KEY ANTENNA
2
SHIELD
SHIELD
Courtesy of CHRYSLER CORP.
