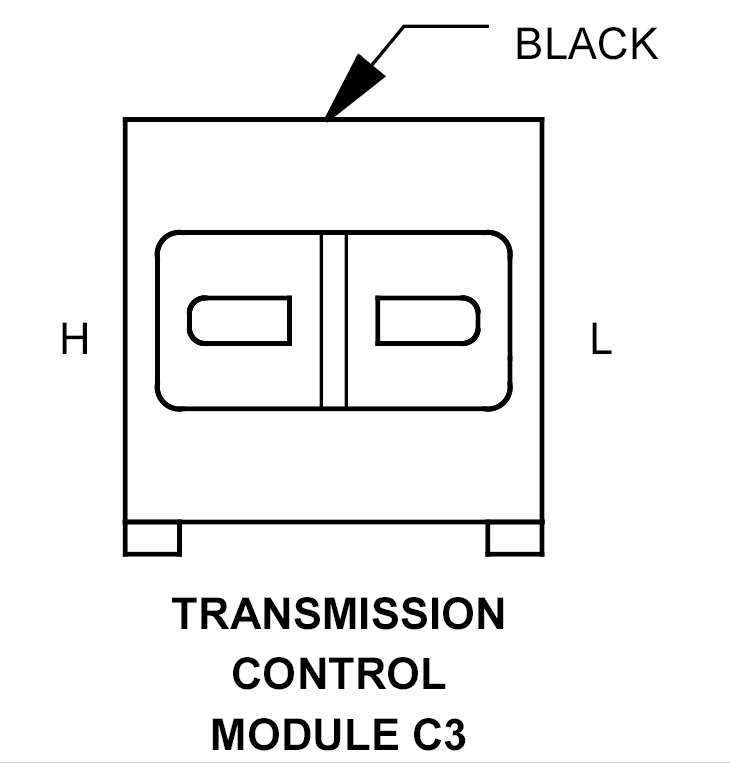

Transmission Control Module Connector End View (C3)
TRANSMISSION CONTROL MODULE C3 - BLACK 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
H
20WT
CAN C BUS (+)
L
20DG
CAN C BUS (-)
Courtesy of CHRYSLER CORP.
