Engine Fuse Block

Fuse block is located at left outboard end of instrument panel cover. See Fig 1.

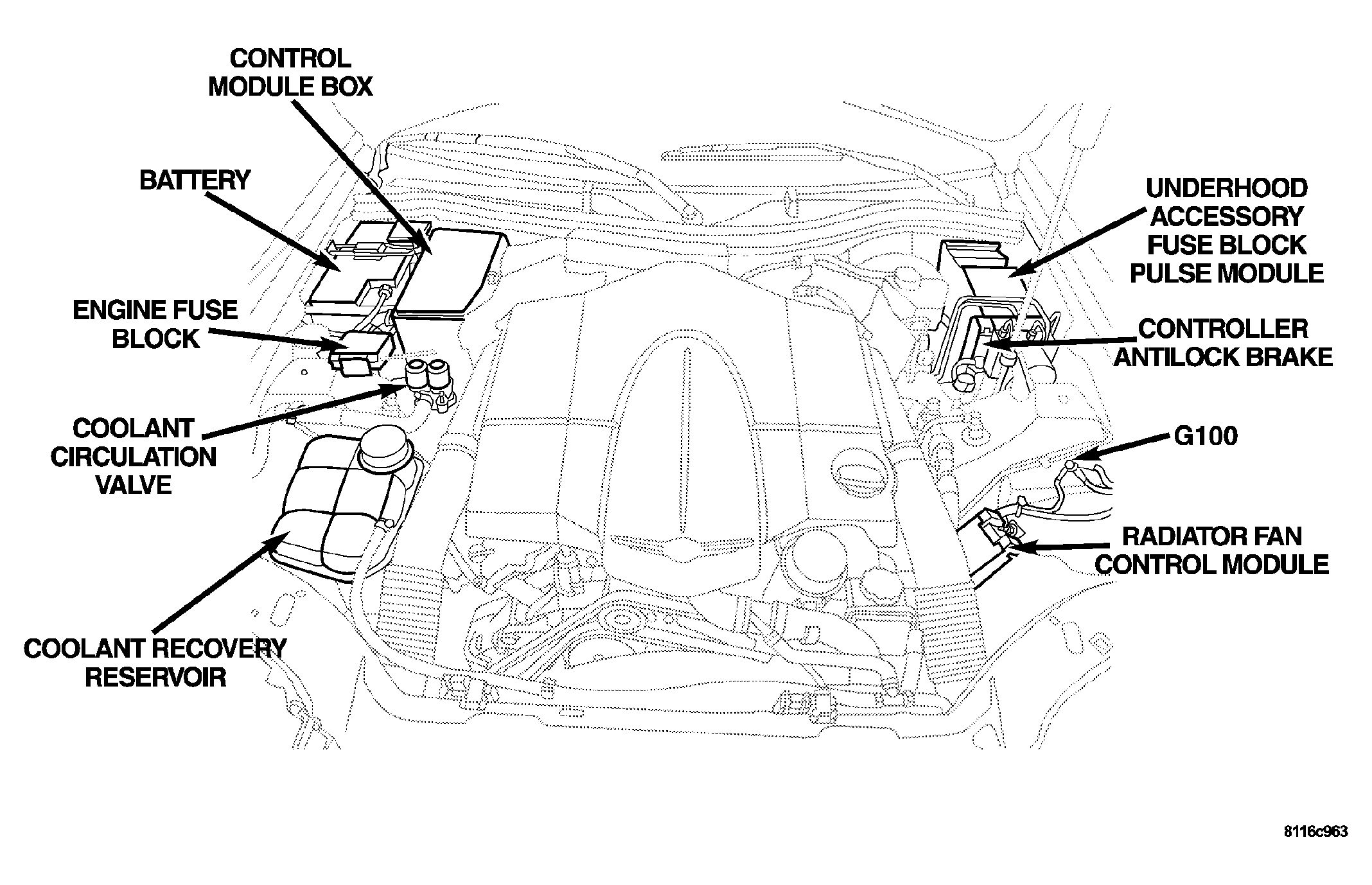

Fig 1: Locating Engine Fuse Block

Courtesy of CHRYSLER CORP.

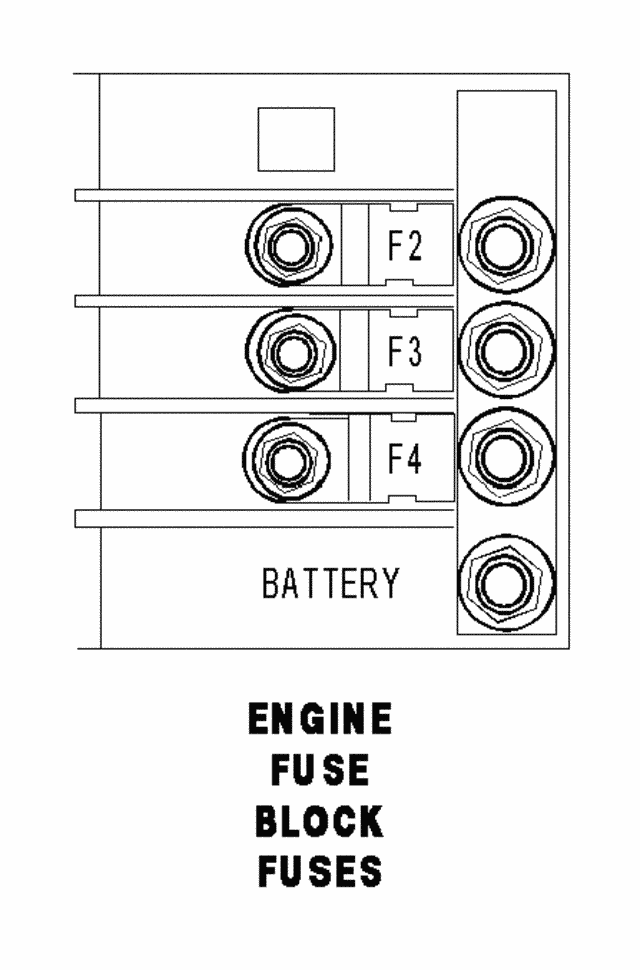

Fig 2: Identifying Engine Fuse Block Components

Courtesy of CHRYSLER CORP.

ENGINE FUSE BLOCK

FUSE NO.	AMPS	FUSED CIRCUIT	FUNCTION
1	-	-	-
2	50A	8BK	FUSED B(+)
3	50A	12BK	FUSED B(+)
3	50A	10BK	FUSED B(+)
4	200A	10BK	FUSED B(+)
4	200A	10BK	FUSED B(+)
5	-	-	-
