3.0L Diesel
WARNING: This page is about a different car, the 2009 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

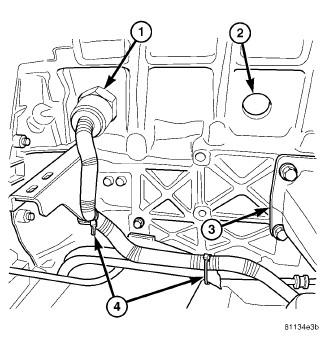

| 1 - ENGINE BLOCK HEATER |
| 2 - CORE PLUG |
| 3 - ENGINE MOUNT |
| 4 - WIRING TIE STRAPS |
- Screw the block heater (1) into the core hole.
- Route the heater wiring harness away from and interference and secure with wiring tie straps (4).
- Refill the cooling system. See Standard Procedure .
- Connect the negative battery cable.
- Start the engine and inspect for leaks. See Diagnosis and Testing
