Speed Control System

WARNING: This page is about a different car, the 2007 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

The speed control system is electronically controlled by the diesel Engine Control Module (ECM) or gas Powertrain Control Module (PCM). A cable and a vacuum controlled servo are not used. This is a servo-less system. Control of the system is accomplished by a 4-position, instrument panel mounted switch.

Switch settings are:

1. Set / Accelerate
2. Resume Set Speed
3. Set / Decelerate
4. Off

The system is designed to operate at speeds above 25 mph (40 km/h).

WARNING: THE USE OF SPEED CONTROL IS NOT RECOMMENDED WHEN DRIVING CONDITIONS DO NOT PERMIT MAINTAINING A CONSTANT SPEED, SUCH AS IN HEAVY TRAFFIC OR ON ROADS THAT ARE WINDING, ICY, SNOW COVERED, OR SLIPPERY.

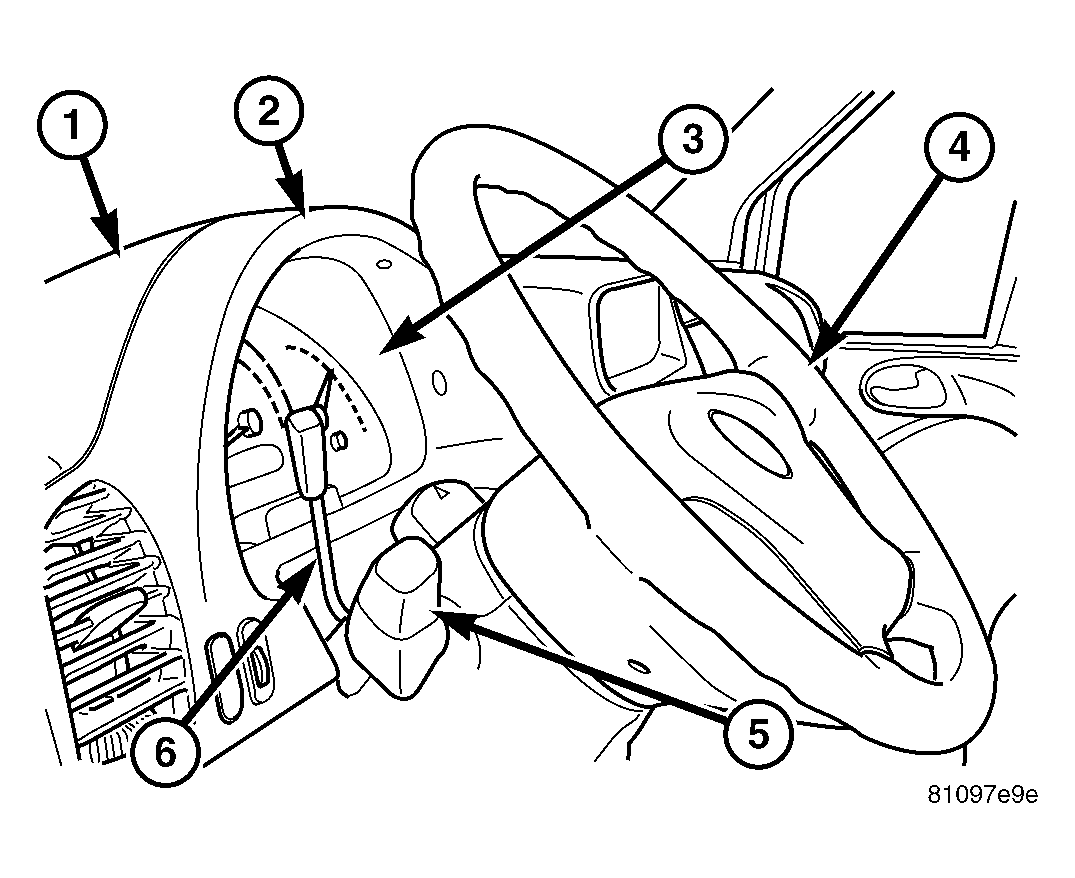

Fig 1: Instrument Cluster

Courtesy of CHRYSLER LLC

1 - COVER

2 - BEZEL

3 - INSTRUMENT CLUSTER

4 - STEERING WHEEL

5 - MULTI-FUNCTION SWITCH

6 - SPEED CONTROL SWITCH

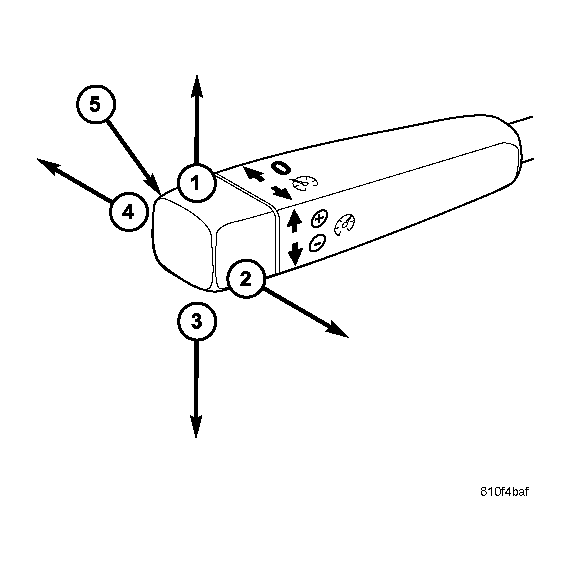

Fig 2: Speed Control Switch Functions

Courtesy of CHRYSLER LLC

1 - SET / ACCELERATE

2 - RESUME SET SPEED

3 - SET / DECELERATE

4 - OFF

5 - SWITCH HANDLE
