Speed Control Switch

WARNING: This page is about a different car, the 2007 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

The speed control switch is mounted to the back of the multi-function switch. See Fig 1. The multi-function switch must be removed first to gain access to the speed control switch mounting screw.

Remove and isolate negative battery cable from battery.
Remove multi-function switch. .
Remove switch mounting screw. See Fig 2.
Remove speed control switch from multi-function switch.
Unplug pigtail electrical connector from instrument panel wiring harness. See Fig 1.

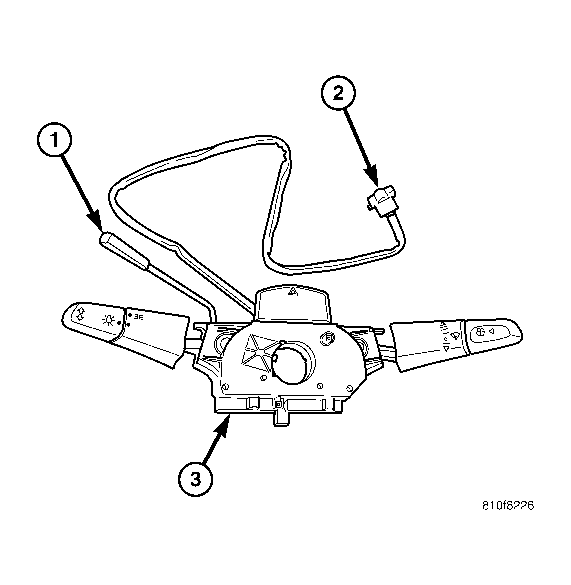

Fig 1: Speed Control Switch Location

Courtesy of CHRYSLER LLC

1 - SWITCH HANDLE

2 - PIGTAIL ELECTRICAL CONNECTOR

3 - MULTI-FUNCTION SWITCH

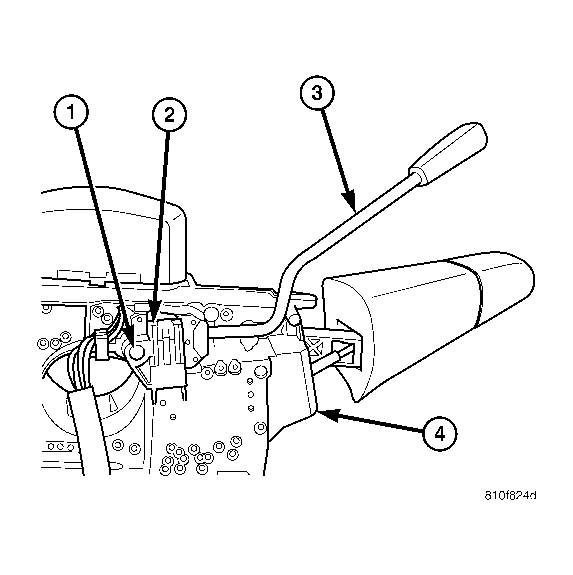

Fig 2: Speed Control Switch Removal/Installation

Courtesy of CHRYSLER LLC

1 - SWITCH MOUNTING SCREW (1)

2 - SPEED CONTROL SWITCH

3 - SWITCH HANDLE

4 - MULTI-FUNCTION SWITCH
