Rear Spring

WARNING: This page is about a different car, the 2007 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

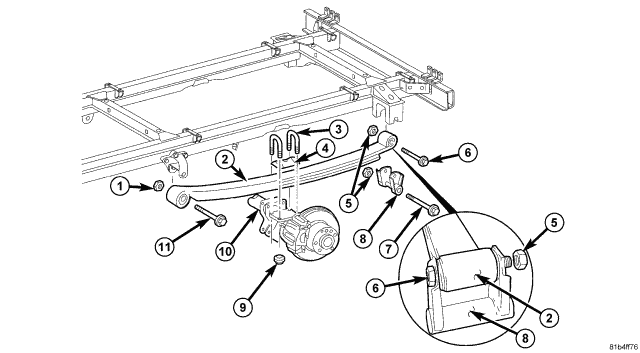

Fig 1: Exploded View Of Rear Spring Components
GC0065199Courtesy of CHRYSLER LLC
NOTE: Larger spring bushing goes toward the front.
  1. Install the spring shackle (8) to the spring (if removed). Tighten to 90 N.m (66 ft. lbs.) (SRW) or 185 N.m (136 ft. lbs.) (DRW).
  2. Install the spring nut (1) and bolt (11) to the front spring bracket. Tighten to 95 N.m (70 ft. lbs.) (SRW) or 185 N.m (136 ft. lbs.) (DRW).
  3. Install the rear of the spring nut (5) and bolt (6) to the rear spring bracket. Tighten to 85 N.m (63 ft. lbs.) (SRW) or 185 N.m (136 ft. lbs.) (DRW).
  4. Raise the rear axle (10) and attach the spring plate (4) and U-bolts (3). Tighten the nuts (9) to 170 N.m (125 ft. lbs.).
    Fig 2: Shock Absorber, Bolt And Rear Axle
    GC0065198Courtesy of CHRYSLER LLC
  5. Install the lower shock bolts (3). Tighten to 106 N.m (70 ft. lbs.) (M12 X 1.5 bolt) or 135 N.m (100 ft. lbs.) (M14 X 1.5 bolt).
  6. Lower the vehicle.
