Module-Fuel Pump

WARNING: This page is about a different car, the 2008 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

Install the Fuel Pump Assembly.

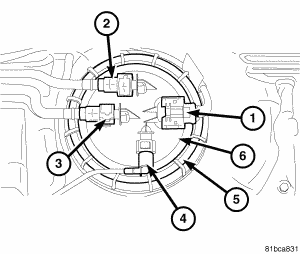

Fig 1: Fuel Pump Harness Connector & Fuel Lines
Courtesy of CHRYSLER LLC
Install the Fuel Pump Lock Ring (5).
Reconnect the Fuel Feed Line (3) and the Fuel Return Line (2) to the Fuel Pump (6).
Reconnect the Fuel Pump Harness Connector (1).
Using a Transmission Jack, raise the Fuel Tank.

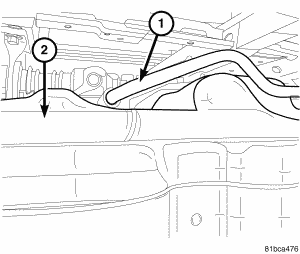

Fig 2: Fuel Tank EVAP Line
Courtesy of CHRYSLER LLC
Reconnect the Evaporative Emission Vent Line (1) to the Fuel Tank (2).

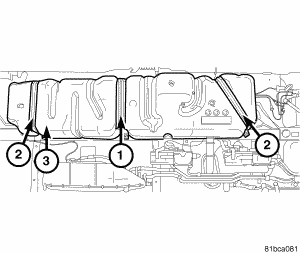

Fig 3: Fuel Tank
Courtesy of CHRYSLER LLC
Install the Center Fuel Tank Strap (1).
Reconnect the Fuel Feed line (2) and Fuel Return line (3).

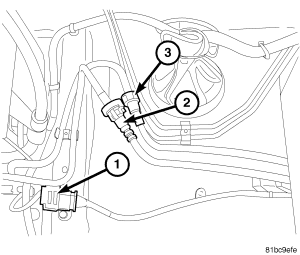

Fig 4: Fuel Lines
Courtesy of CHRYSLER LLC
Reconnect the harness connector (1).

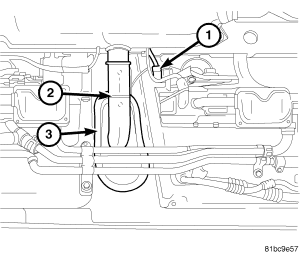

Fig 5: Fuel Fill Tube
Courtesy of CHRYSLER LLC
Install the Fuel Filler Tube Grommet (3).
Reconnect the harness connector (1).
Install the tie straps (2).

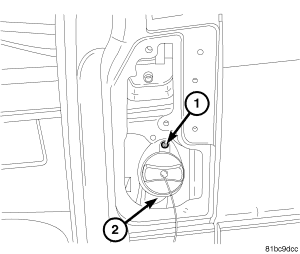

Fig 6: Fuel Fill Tube Fastener & Gas Cap
Courtesy of CHRYSLER LLC
Install the Fuel Filler Tube (2) and the Fuel Filler Tube Fastener (1).

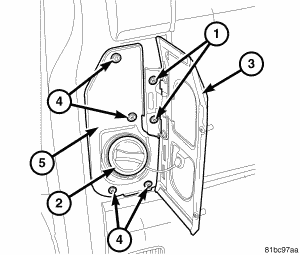

Fig 7: Fuel Fill Door
Courtesy of CHRYSLER LLC
Install the Fuel Filler Tube Panel (2) and install the 4 Fuel Filler Tube Panel Fasteners (4).
Install the Fuel Filler Door (3) and the Gas Cap (2), then install the 2 Fuel Filler Door Fasteners (1).
