A/C Pressure Sensor Connector End View

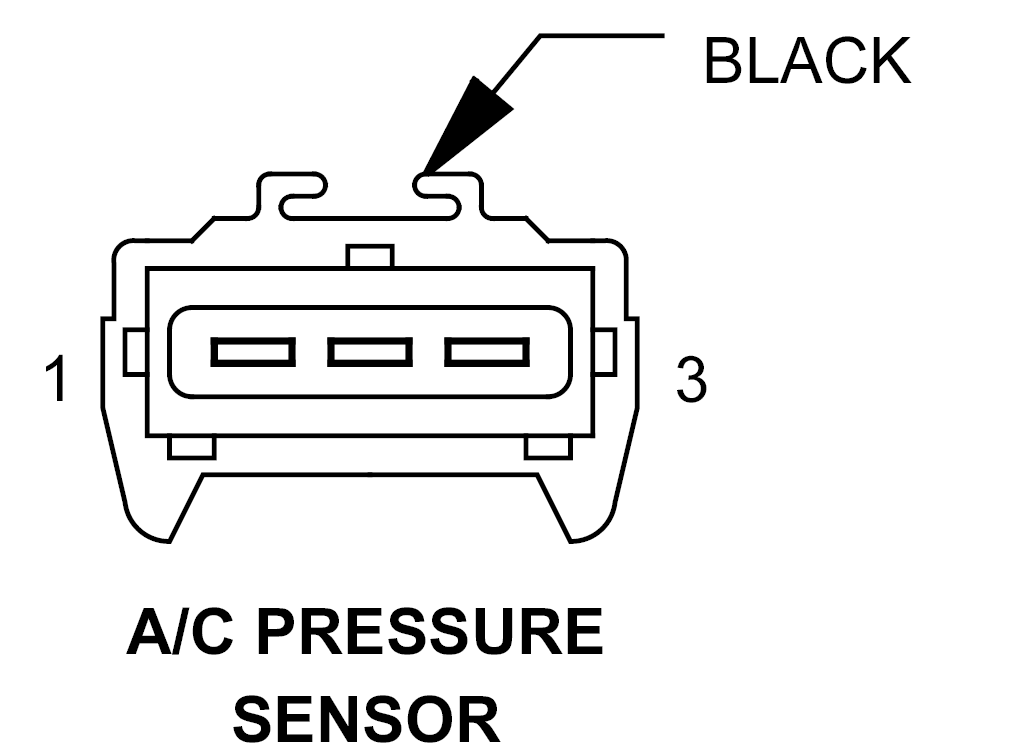

A/C PRESSURE SENSOR - BLACK 3-WAY

GZH780003Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 18BR/YL SENSOR GROUND
2 18BL/RD A/C PRESSURE SENSOR SIGNAL
3 18RD/WT A/C PRESSURE SENSOR 5 VOLT SUPPLY
