Coolant Level Sensor Connector End View

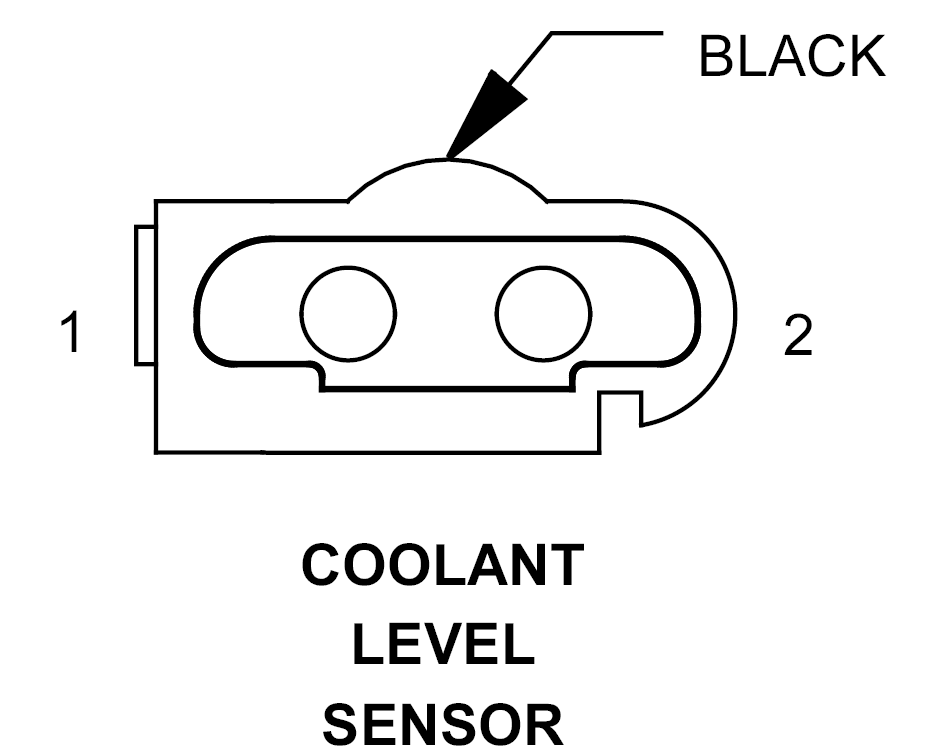

COOLANT LEVEL SENSOR - BLACK 2-WAY

GZH780094Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 20BR/BL COOLANT/WASHER LEVEL COMBINATION
2 20BR/YL COOLANT/WASHER LEVEL SIGNAL
