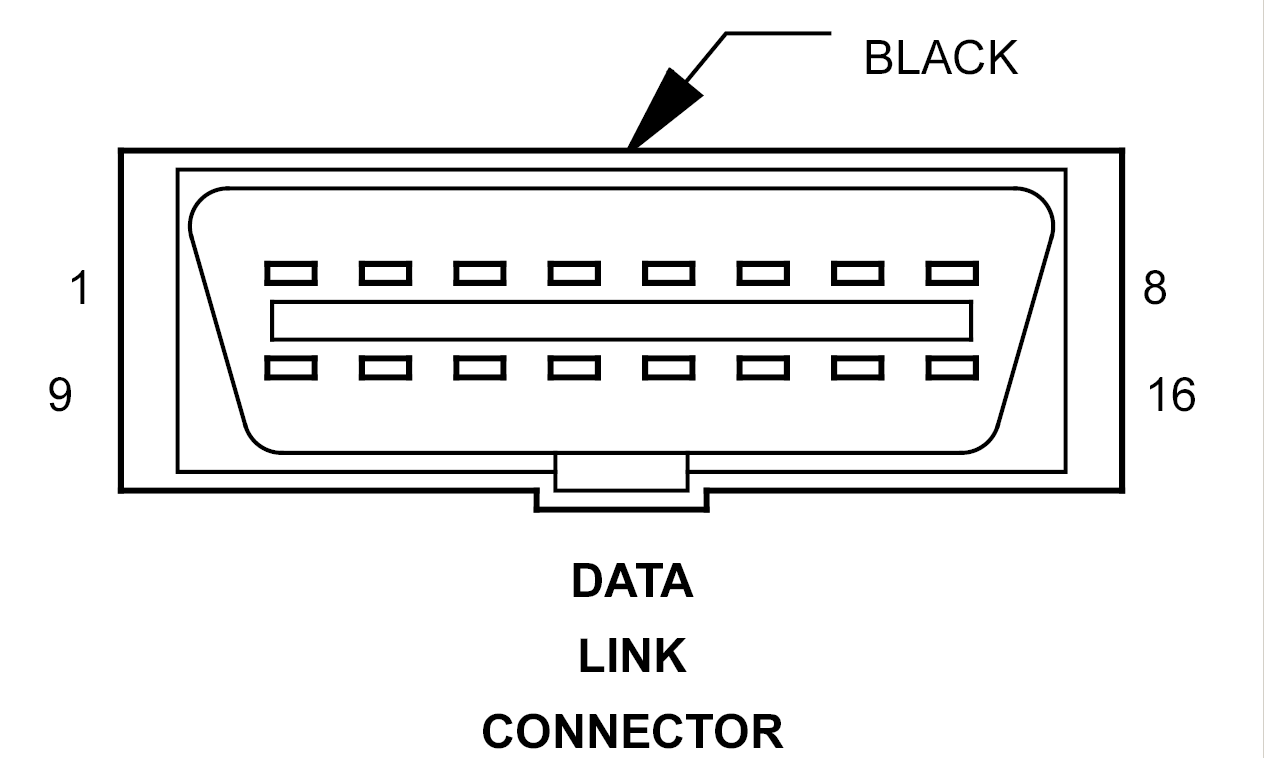

Data Link Connector, Connector End View
DATA LINK CONNECTOR - BLACK 16-WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | 20BK/WT | SCI TRANSMIT |
| 2 | - | - |
| 3 | 20DG/YL | SCI RECEIVE |
| 4 | 18BR | GROUND |
| 5 | 20BR/YL | SENSOR GROUND |
| 6 | - | - |
| 7 | 22BL | SCI TRANSMIT |
| 8 | 20RD/WT | FUSED IGNITION SWITCH OUTPUT |
| 9 | 22RD/YL | SCI TRANSMIT |
| 10 | - | - |
| 11 | 20DG | SCI TRANSMIT |
| 12 | 20WT/DG | CAN INTERIOR BUS (125K) (+) |
| 13 | 20BK/DG | CAN INTERIOR BUS (125K) (-) |
| 14 | - | - |
| 15 | 22BK/BL | SCI TRANSMIT |
| 16 | 18RD/DG | FUSED B(+) |
