Kick Down Switch Connector End View

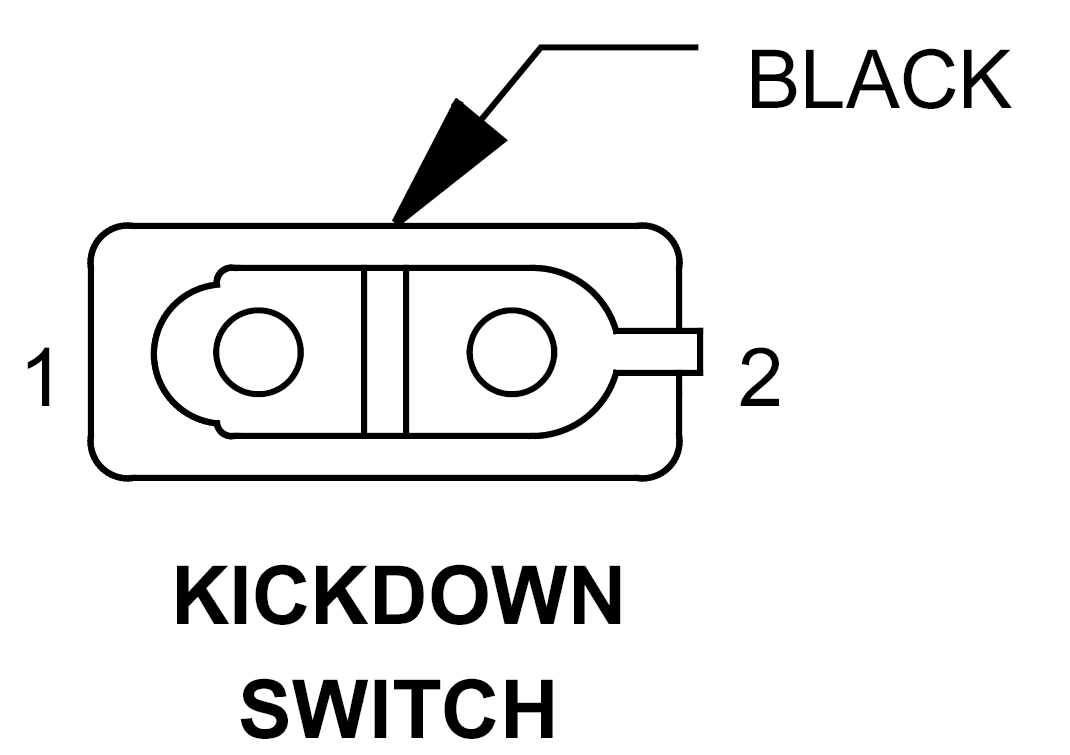

KICK DOWN SWITCH - BLACK 2-WAY

GZH780137Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 20BR GROUND
2 20BK KICKDOWN SWITCH SIGNAL
