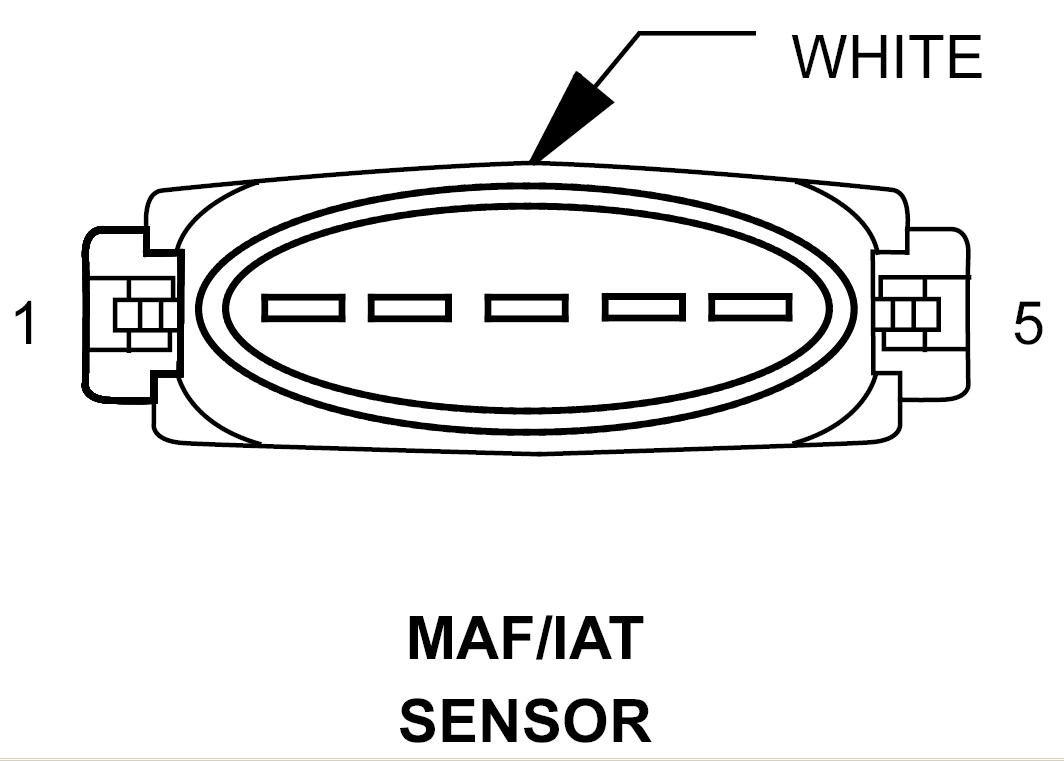

Mass Air Flow Sensor/Intake Air Sensor Temperature Connector End View
MAF/IAT SENSOR - WHITE 5-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
20YL/DG |
IAT SENSOR SIGNAL |
| 2 |
20RD/BL |
FUSED ENGINE CONTROL RELAY OUTPUT |
| 3 |
20BR |
SENSOR GROUND |
| 4 |
20BR/YL |
5 VOLT SUPPLY |
| 5 |
20YL/WT |
MAF SENSOR SIGNAL |
