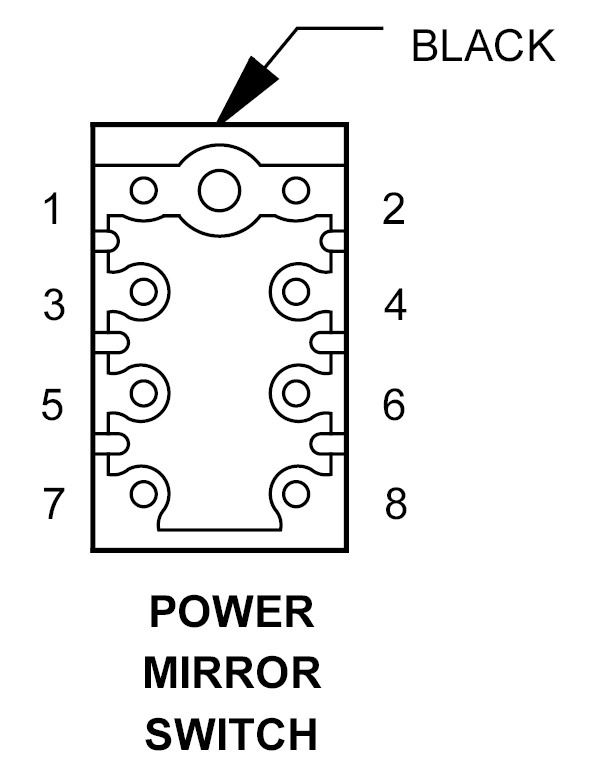

Power Mirror Switch Connector End View
POWER MIRROR SWITCH - BLACK 8-WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | 18BR | GROUND |
| 2 | - | - |
| 3 | 18GY | LEFT MIRROR COMMON DRIVER |
| 4 | 18GY/VT | RIGHT MIRROR COMMON DRIVER |
| 5 | 18WT | RIGHT MIRROR VERTICAL DRIVER |
| 5 | 18BK | LEFT MIRROR VERTICAL DRIVER |
| 6 | 18PK/RD/WT | FUSED B(+) |
| 7 | 18WT | LEFT MIRROR HORIZONTAL DRIVER |
| 8 | 18BK/VT | RIGHT MIRROR HORIZONTAL DRIVER |
