Right Front Lamp Assembly Connector End View

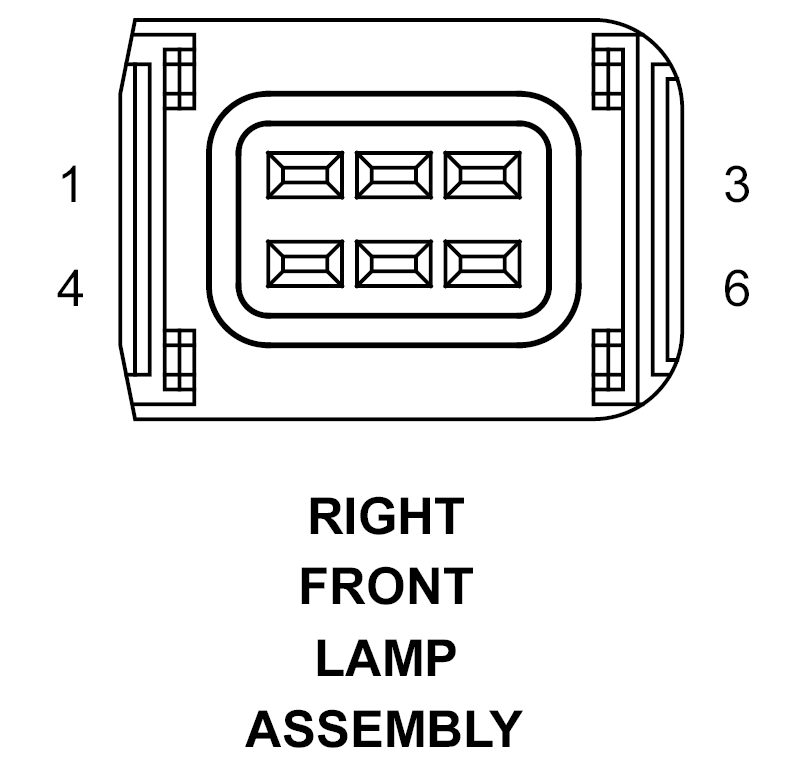

RIGHT FRONT LAMP ASSEMBLY - 6-WAY

GZH780217Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 18BK/DG RIGHT TURN SIGNAL OUTPUT
2 16BR GROUND
3 16YL FUSED LOW BEAM OUTPUT
4 16WT FUSED HIGH BEAM OUTPUT
5 - -
6 - -
