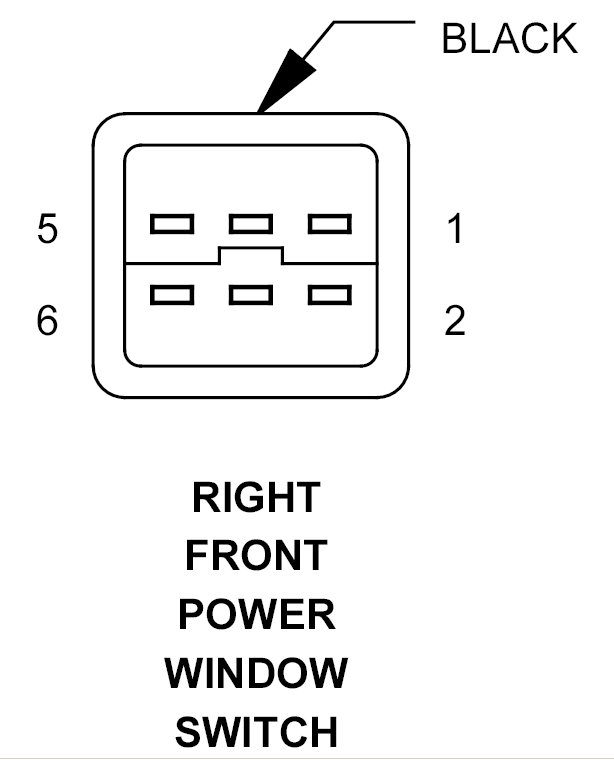

Right Front Power Window Switch Connector End View
RIGHT FRONT POWER WINDOW SWITCH - BLACK 6-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
20BR |
GROUND |
| 2 |
20WT/BL |
RIGHT POWER WINDOW SWITCH SENSE |
| 3 |
- |
- |
| 4 |
- |
- |
| 5 |
20DG/WT |
FUSED ILLUMINATION CONTROL MODULE OUTPUT |
| 6 |
- |
- |
