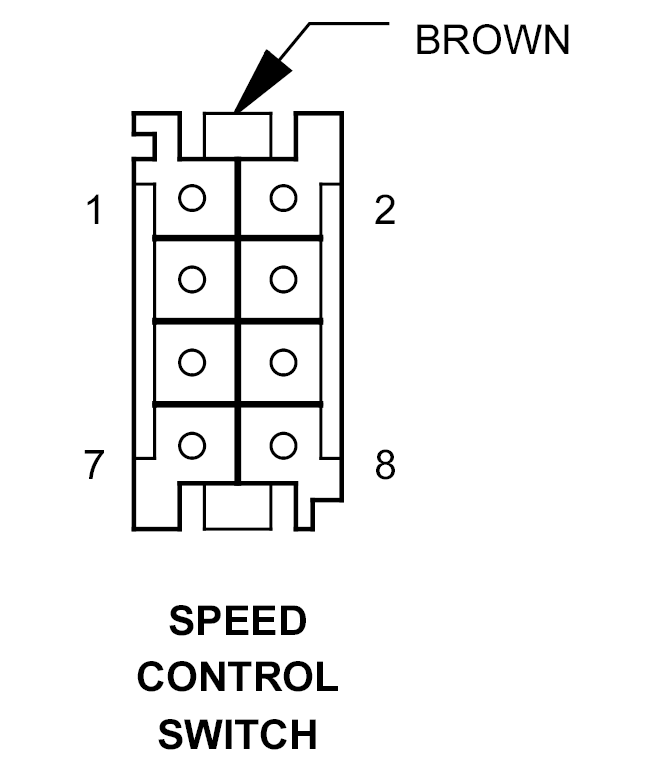

Speed Control Switch Connector End View
SPEED CONTROL SWITCH - BROWN 8-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
20GY |
OFF SIGNAL |
| 2 |
18BK/RD |
FUSED IGNITION SWITCH OUTPUT |
| 3 |
20YL/DG |
DECEL/SET SIGNAL |
| 4 |
20DG/RD |
ACCEL/SET SIGNAL |
| 5 |
20BL/RD |
RESUME SIGNAL |
| 6 |
20DG/BL |
ON SIGNAL |
| 7 |
- |
- |
| 8 |
- |
- |
