Steering Angle Sensor Connector End View

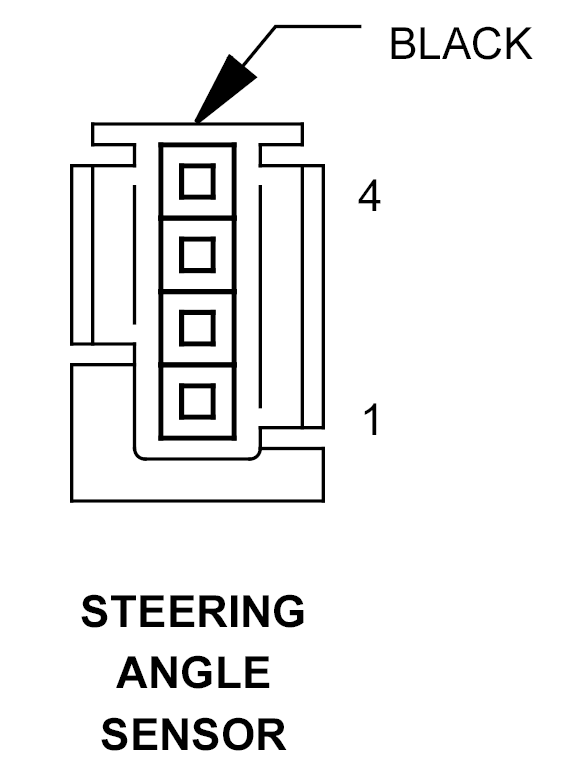

STEERING ANGLE SENSOR - BLACK 4-WAY

GZH780243Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 20BL/YL STEERING ANGLE SENSOR SIGNAL
2 20PK/RD FUSED IGNITION SWITCH OUTPUT
3 20BR GROUND
4 18RD/DG FUSED B(+)
