Coil Spring

Fig 1: Locating Mounting Flange/Frame

Courtesy of CHRYSLER LLC

Install the spring into the spring pocket.

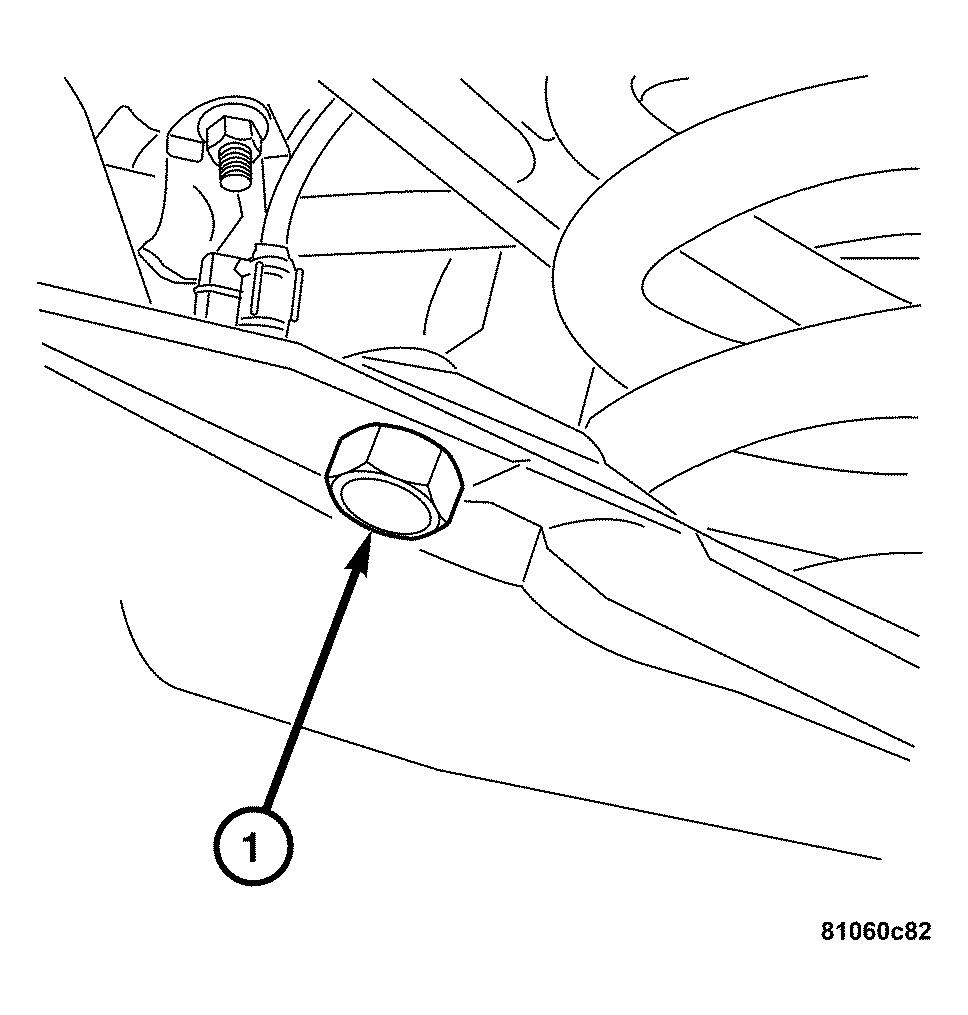

Swing the lower control arm (2) up and install the bolt attaching the control arm to the frame (1).

Fig 2: Locating Rear Spring
Courtesy of CHRYSLER LLC

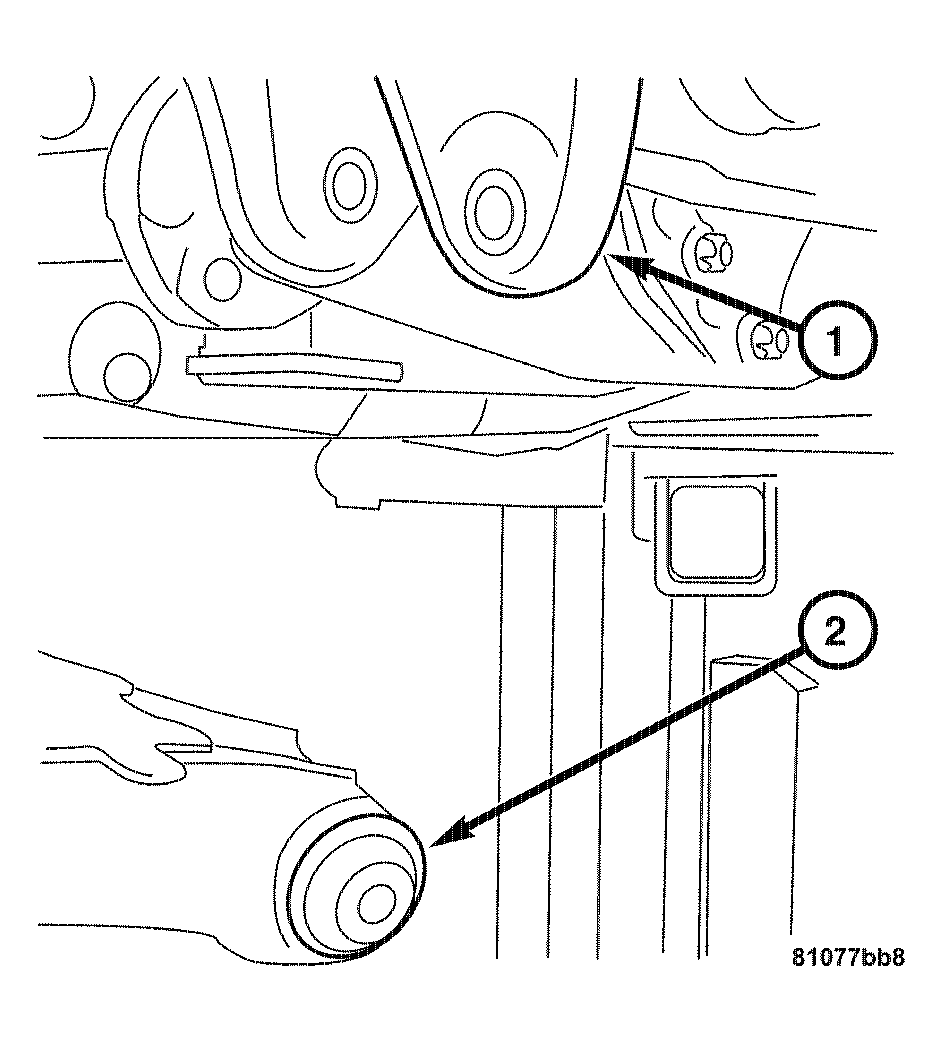

Carefully release the spring (1) insuring the spring properly aligns with the spring perch detents.

Fig 3: Rear Shock Absorber Mounting
Courtesy of CHRYSLER LLC

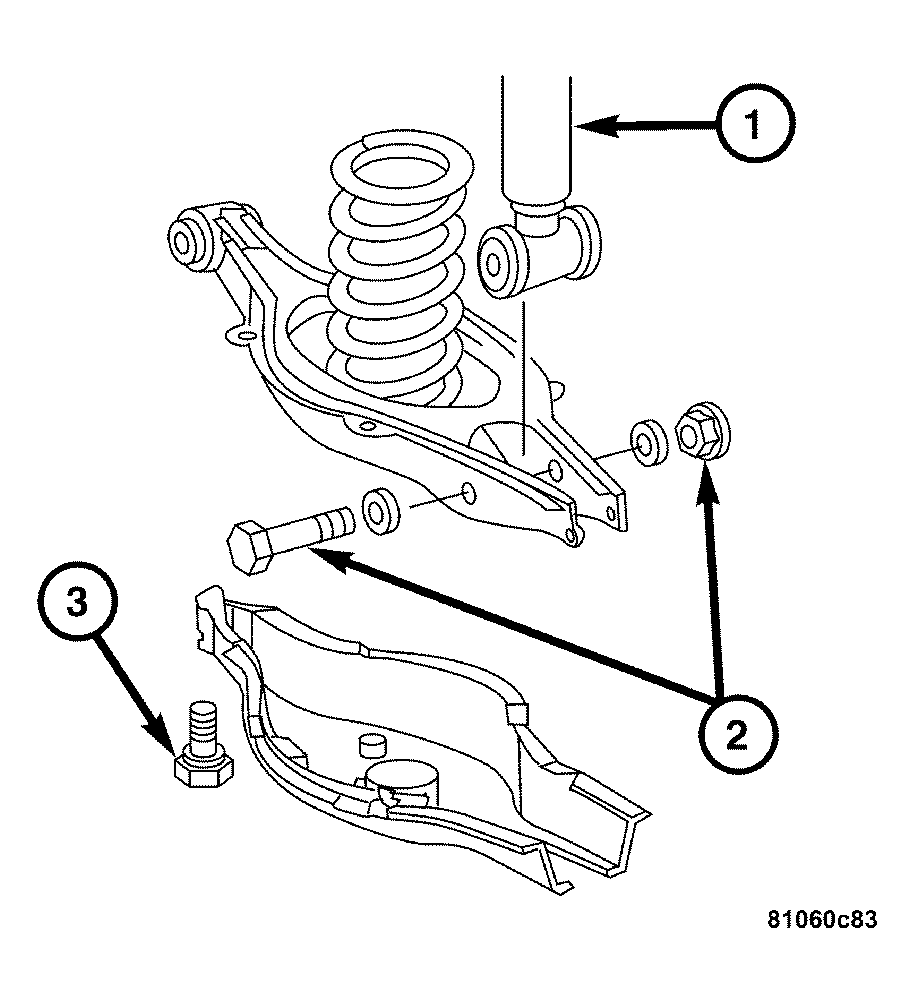

Install the lower shock mount (1) to the lower control arm. Tighten to 55 N.m (41 ft. lbs.).

Fig 4: Locating Cover Bolts
Courtesy of CHRYSLER LLC

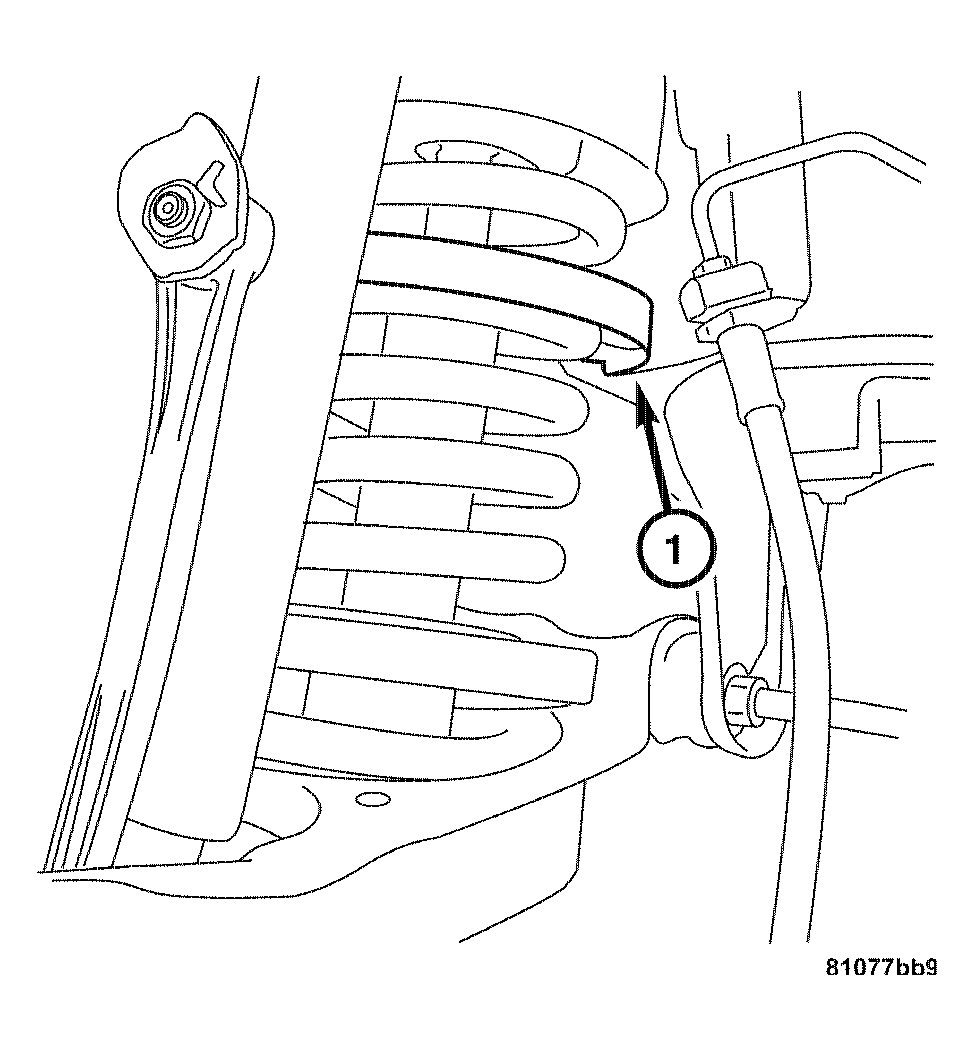

Install the control arm cover and bolts (1).
Install the wheel and tire assembly. Refer to STANDARD PROCEDURE .
Check vehicle alignment. See STANDARD PROCEDURE .
