Sentry Key Antenna Ring






SENTRY KEY ANTENNA RING





1. Remove the instrument cluster.

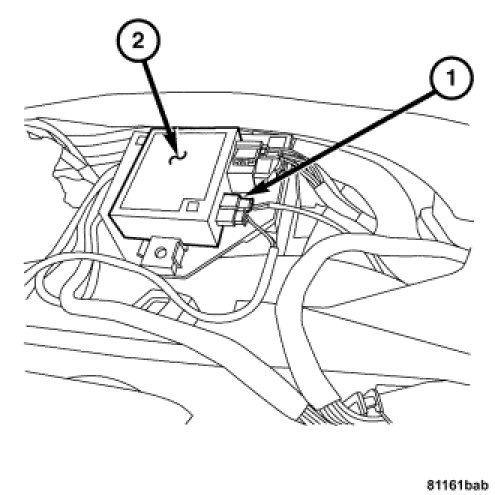

2. Disconnect the sentry key antenna ring electrical connector (1) from the sentry key remote entry module (2).





NOTE: Before disassembly, note the wire harness routing for proper reassembly.

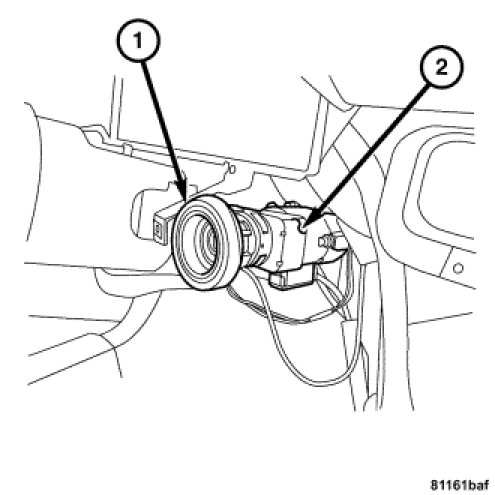

3. Pull to remove the sentry key antenna ring (1) from the ignition switch key cylinder (2).
