Seat Temperature Control Module

Component ID: 156
Component : HEATED SEAT MODULE

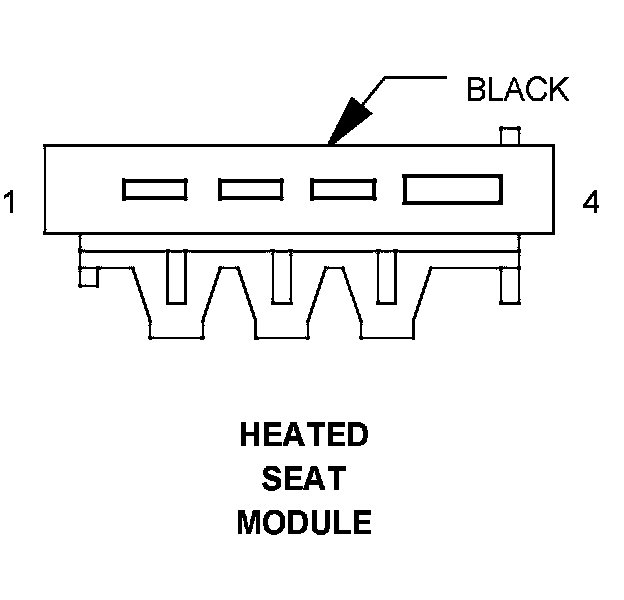

Connector:
Name : HEATED SEAT MODULE
Color : BLACK
# of pins : 4




Pin Description Circuit
1 RIGHT HEATED SEAT OUTPUT 16BK/VT
2 FUSED IGNITION SWITCH OUTPUT 20PK/YL/DG
3 LEFT HEATED SEAT OUTPUT 16BK/GY
4 FUSED B(+) 14RD/YL
