Installation






INSTALLATION





1. Connect the A/C harness connector to the compressor.

2. Install the bolts on the high side and the low side pressure lines. Tighten to 23 Nm (17 ft. lbs.).

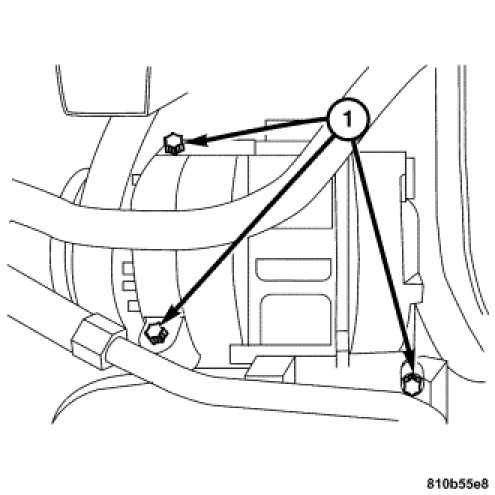

3. Install the A/C compressor then install the three bolts (1). Tighten to 23 Nm (17 ft. lbs.).

4. Install the lower engine compartment panel.

5. Install the accessory drive belt.

6. Connect the negative battery cable.

7. Charge the refrigerant to the system.
