System Specifications






SPECIFICATIONS

Gear Ratios:

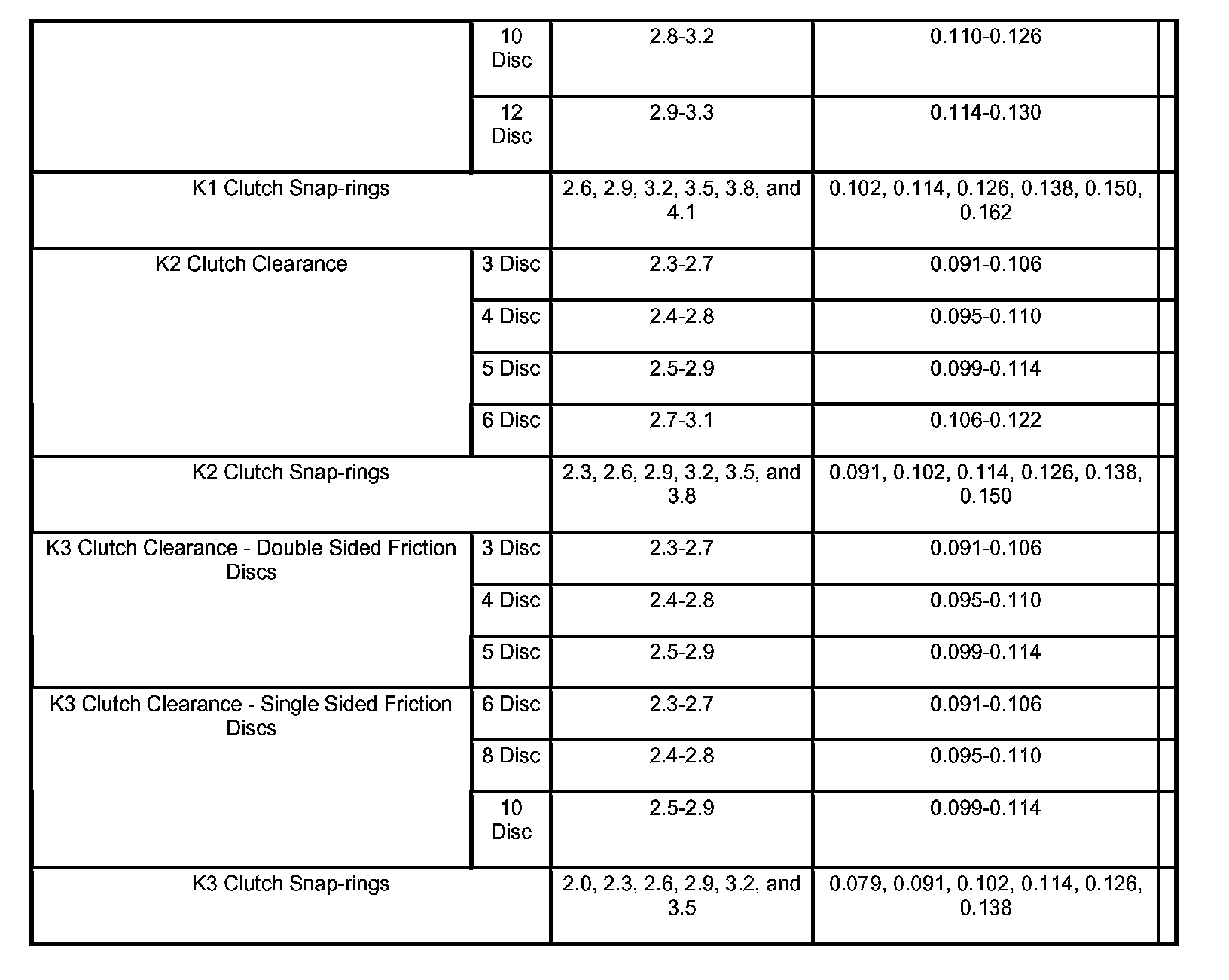

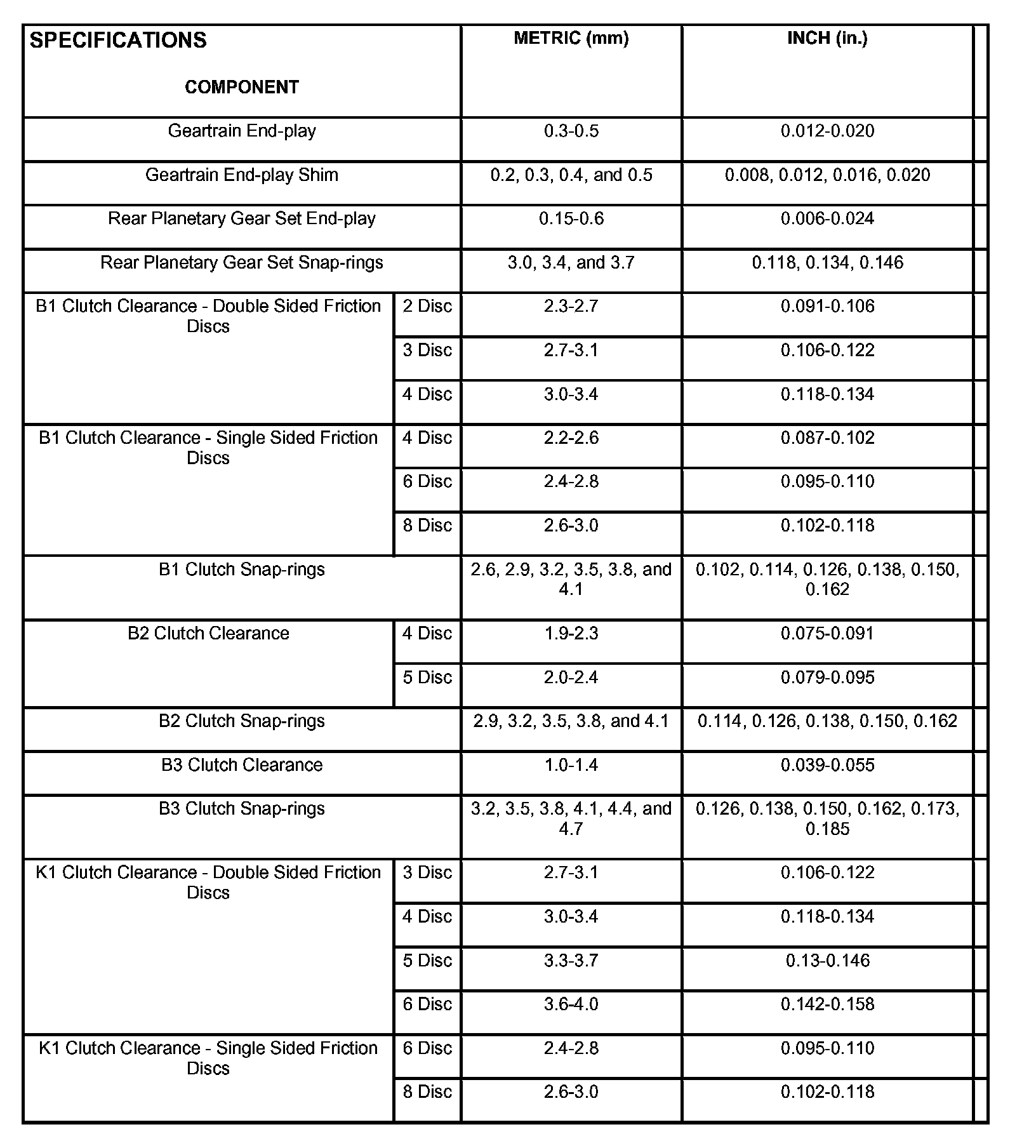

Specifications (Part 1):




Specifications (Part 2):





Torque Specifications:






Flywheel Bolts
Stage One 45 Nm (33 ft. lbs.) 398 in. lbs.
Stage Two 90°

NOTE: New flywheel/flexplate bolts must be used.

Oil Pan Bolts

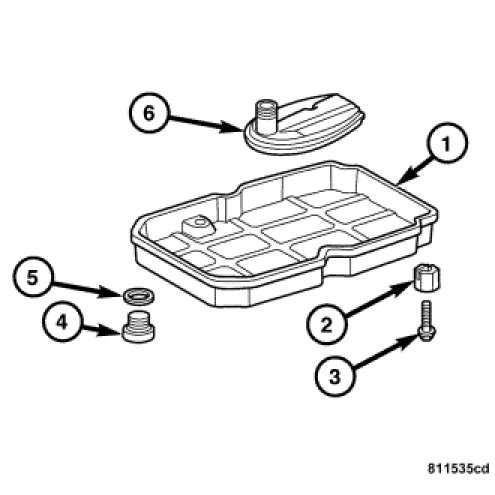

Install the transmission pan (1) and bolts (3).
Tighten the bolts to 8 Nm (71 In.lbs.)
