System Specifications

TORQUE

Torque Specifications:

Pressure Plate





NOTE: Gradually tighten the clutch cover bolts 1 to 1 1/2 turns at a time.

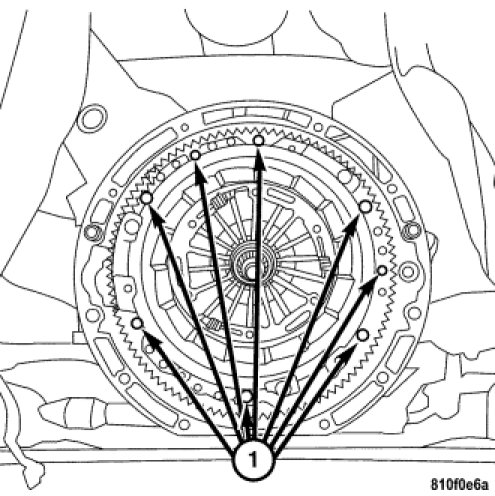

Tighten the clutch cover bolts (1) until all bolts are fully seated. Tighten to 25 Nm (18 ft. lbs.)
