Installation

INSTALLATION

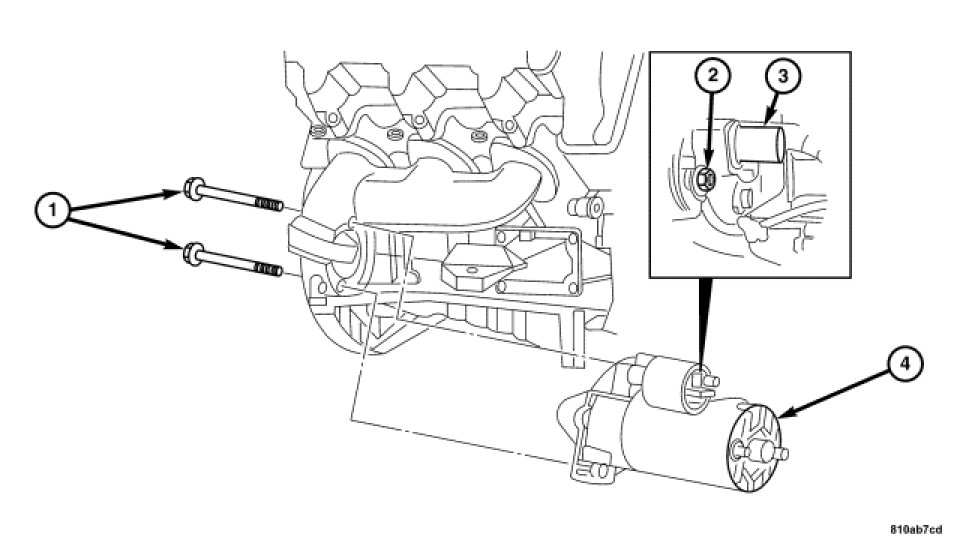

1. Install the starter (4).

2. Connect the starter cable and the ground cable with the nuts. Tighten the starter positive cable nut to 14 Nm (10 ft. lbs.). Tighten the starter ground cable nut (2) to 6 Nm (52 in. lbs.)

3. Install the starter positive cable protective plastic cap (3).

4. Install the starter bolts (1). Tighten to 42 Nm (31 ft. lbs.).

5. Install the right side exhaust pipe.

6. Connect the right side O2 sensor.

7. Install the lower engine panel.

8. Lower the vehicle.

9. Connect the negative battery cable.
