Power Window Motor: Locations

Component ID: 253
Component : RIGHT FRONT POWER WINDOW MOTOR

Connector:
Name : RIGHT FRONT POWER WINDOW MOTOR
Color : BLACK
# of pins : 2




Pin Description Circuit
1 RIGHT FRONT POWER WINDOW DRIVER (UP) 14DG
2 RIGHT FRONT POWER WINDOW DRIVER (DOWN) 14BK

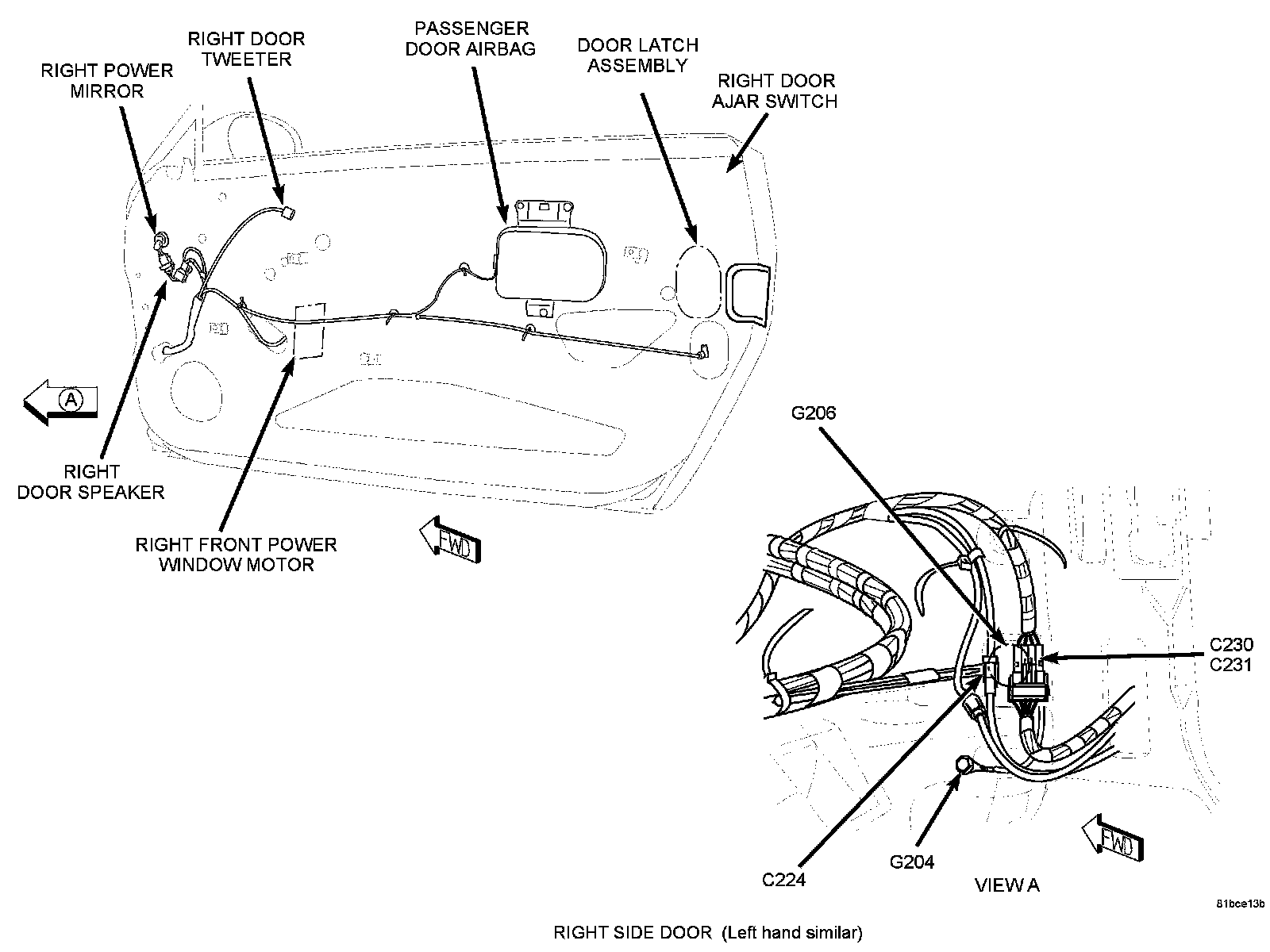

Component Location - 20
