Fuel Level Sending Unit

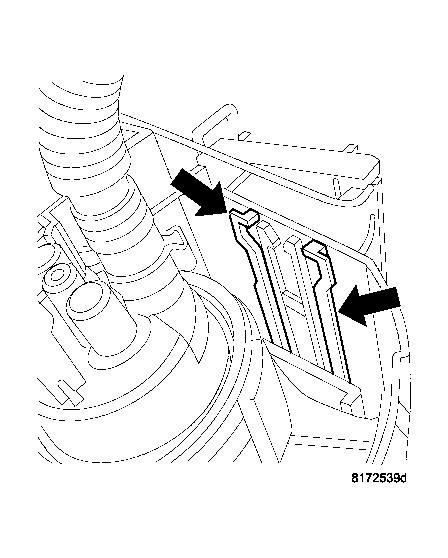

Fig 1: View Of Track

Courtesy of CHRYSLER LLC

Sensor guide channels in pump module.

Fig 2: View Of Track Guides
Courtesy of CHRYSLER LLC
Guide tabs on level sensor.

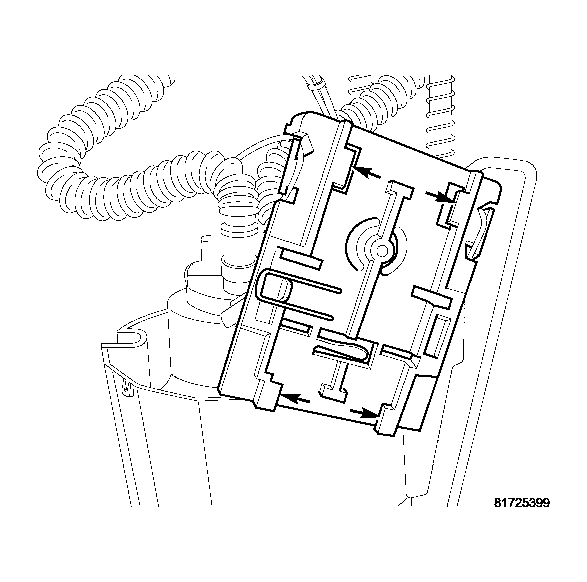

Fig 3: Groove in Back Side of Level Sensor
Courtesy of CHRYSLER LLC
Slide level sensor into channel until it snaps into place. Ensure tab of sensor locks in place.

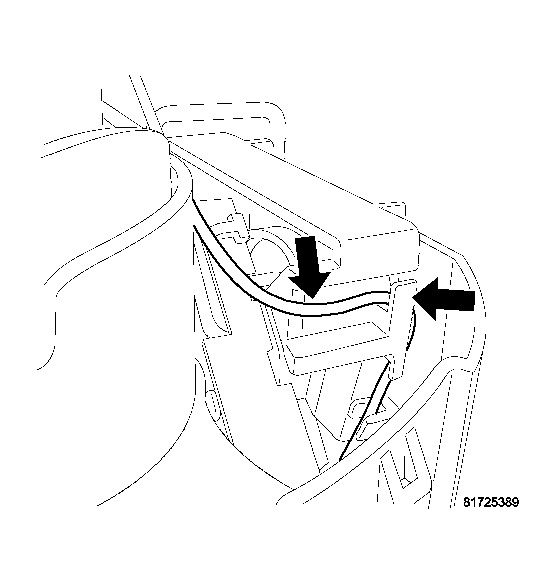

Fig 4: Level Sensor
Courtesy of CHRYSLER LLC
Install wire into wire retainer.

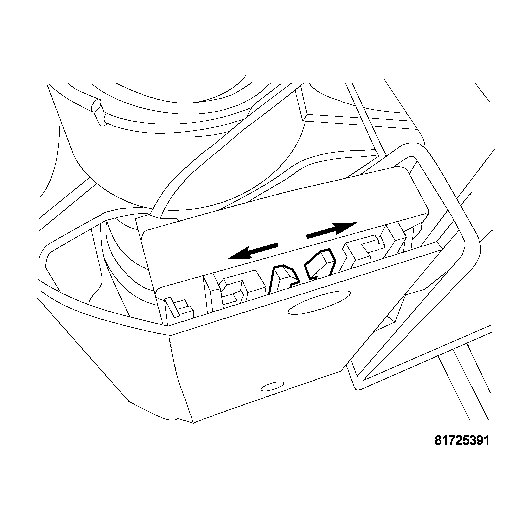

Fig 5: Wedge Lock
Courtesy of CHRYSLER LLC
Install level sensor wires in connector. Push the wires up through the connector and then pull them down until they lock in place. Ensure signal and ground wires are installed in the correct position.
Install locking wedge on connector.

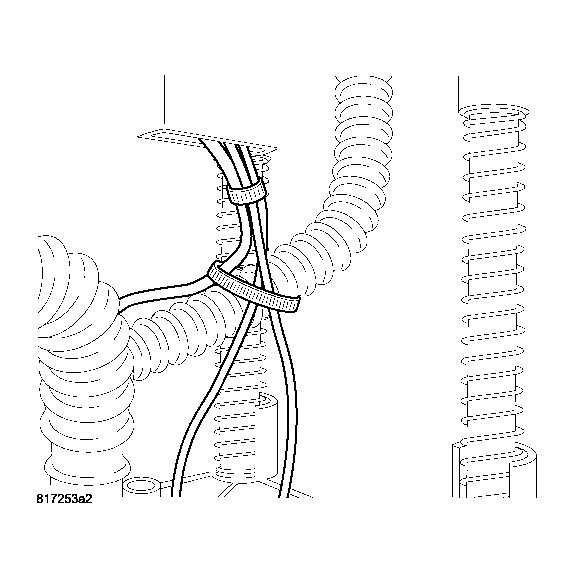

Fig 6: Identifying Wire Tie
Courtesy of CHRYSLER LLC
Push connector up into bottom of fuel pump module electrical connector (1).
Install wire tie and bundle wires to fuel tube.
Install fuel pump module, see INSTALLATION .
