Diagnostic Test

  1. 1) O2 SENSOR BELOW 1.5 VOLTS

    Start the engine.

    Allow the engine to reach normal operating temperature.

    With a scan tool, read the 1/1 O2 Sensor voltage.

    Is the voltage below 1.5 volts?

    Yes

    1. Go to  2).

    No

    1. Refer to the INTERMITTENT CONDITION Diagnostic Procedure.
    2. Perform POWERTRAIN VERIFICATION TEST .
  2. 2) (K41) O2 SENSOR 1/1 SIGNAL CIRCUIT

    Turn the ignition off.

    Disconnect the 1/1 O2 Sensor harness connector.

    Ignition on, engine not running.

    With a scan tool, monitor the 1/1 O2 Sensor voltage.

    Is the 1/1 O2 Sensor voltage above 4.8 volts?

    Yes

    1. Go to  3).

    No

    1. Go to  5).
  3. 3) O2 SENSOR

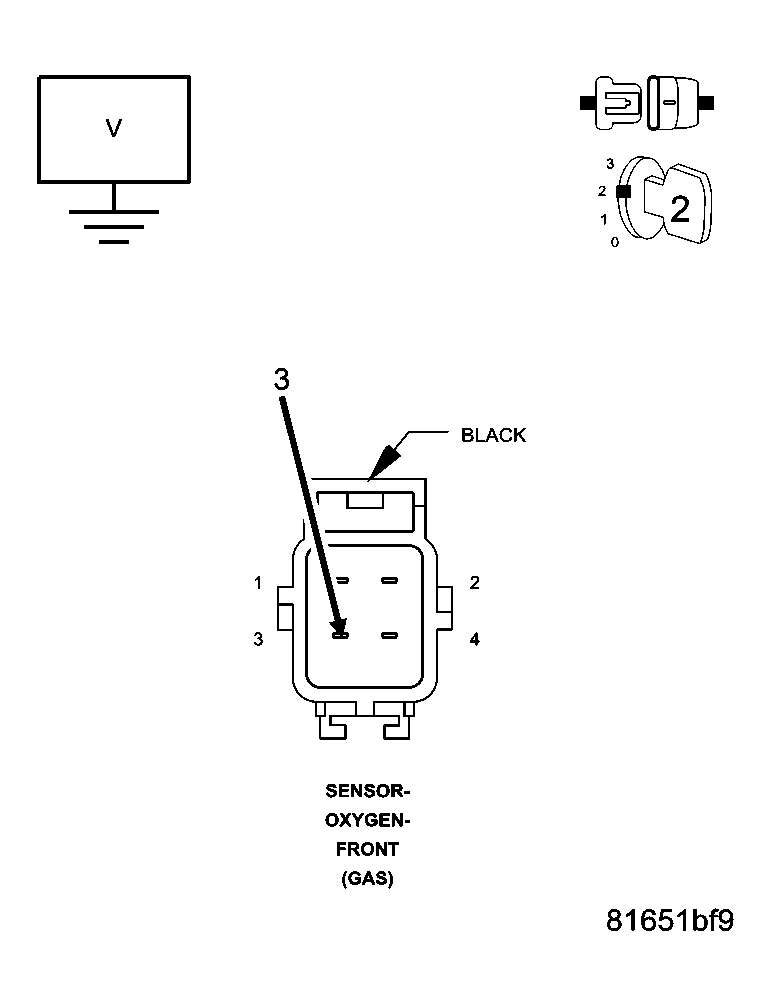

    Fig 1: Measuring For Voltage On O2 Upstream Return Circuit
    GC0041587Courtesy of CHRYSLER LLC

    Measure the voltage on the (K902) O2 Return Upstream circuit in the O2 Sensor harness connector.

    Is the voltage at 2.5 volts?

    Yes

    1. Replace the O2 Sensor.
    2. Perform POWERTRAIN VERIFICATION TEST .

    No

    1. Go to  4).
  4. 4) (K902) O2 RETURN UPSTREAM CIRCUIT SHORTED TO GROUND

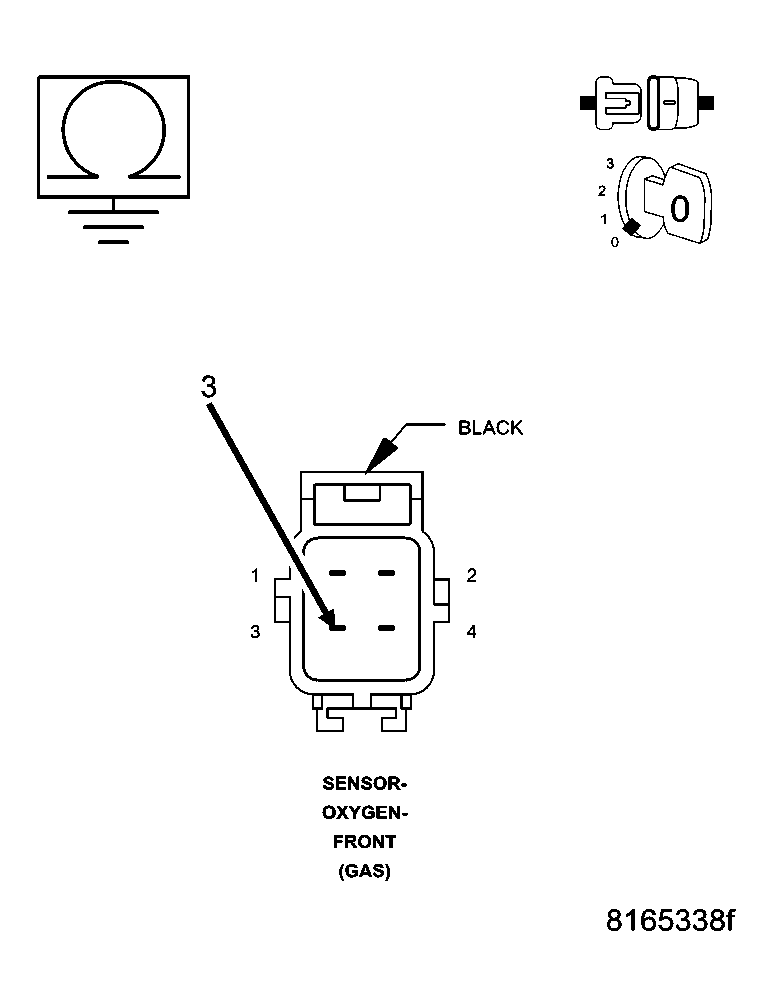

    Fig 2: Measuring Resistance Between Ground & O2 Upstream Return Circuit
    GC0041591Courtesy of CHRYSLER LLC

    Turn the ignition off.

    Disconnect the PCM harness connectors.

    Measure the resistance between ground and the (K902) O2 Upstream Return circuit in the O2 Sensor harness connector.

    Is the resistance below 100 ohms?

    Yes

    1. Repair the short to ground in the (K902) O2 Return Upstream circuit.
    2. Perform POWERTRAIN VERIFICATION TEST .

    No

    1. Go to  8).
  5. 5) (K41) O2 SENSOR 1/1 SIGNAL CIRCUIT SHORTED TO GROUND

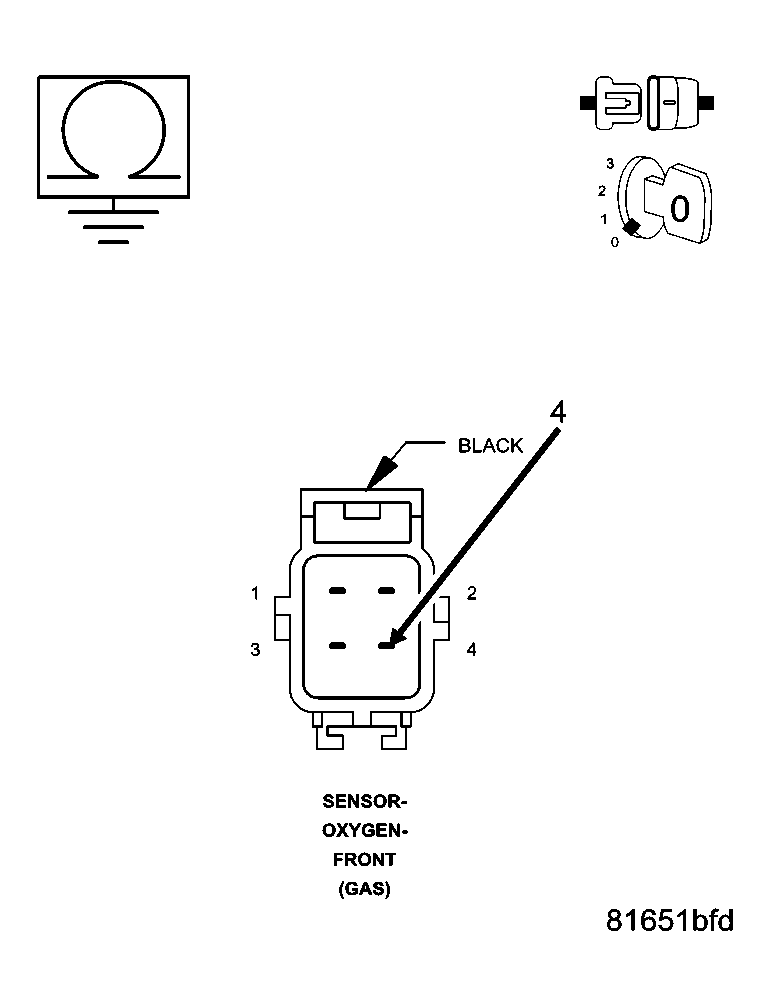

    Fig 3: Measuring Resistance Between Ground & O2 Sensor 1/1 Signal Circuit
    GC0041588Courtesy of CHRYSLER LLC

    Turn the ignition off.

    Disconnect the PCM harness connectors.

    Measure the resistance between ground and the (K41) O2 Sensor 1/1 Signal circuit in the O2 Sensor harness connector.

    Is the resistance below 100 ohms?

    Yes

    1. Repair the short to ground in the (K41) O2 Sensor 1/1 Signal circuit.
    2. Perform POWERTRAIN VERIFICATION TEST .

    No

    1. Go to  6).
  6. 6) (K41) O2 SENSOR 1/1 SIGNAL CIRCUIT SHORTED TO (K902) O2 RETURN UPSTREAM CIRCUIT

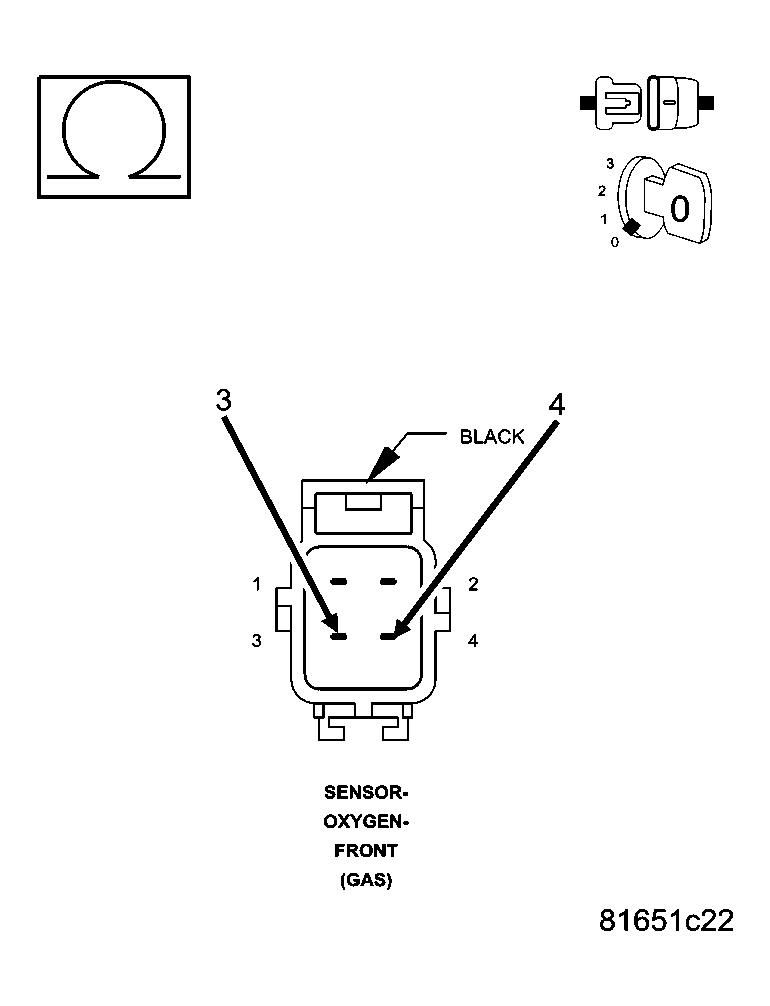

    Fig 4: Measuring Resistance Between O2 Sensor 1/1 Signal Circuit & O2 Return Upstream Circuit
    GC0041589Courtesy of CHRYSLER LLC

    Measure the resistance between the (K41) O2 Sensor 1/1 Signal circuit and the (K902) O2 Return Upstream circuit in the O2 Sensor harness connector.

    Is the resistance below 100 ohms?

    Yes

    1. Repair the short between the (K902) O2 Return Upstream circuit and the (K41) O2 Sensor 1/1 Signal circuit.
    2. Perform POWERTRAIN VERIFICATION TEST .

    No

    1. Go to  7).
  7. 7) (K41) O2 SENSOR 1/1 SIGNAL CIRCUIT SHORTED TO THE (Z902) O2 1/1 HEATER GROUND CIRCUIT

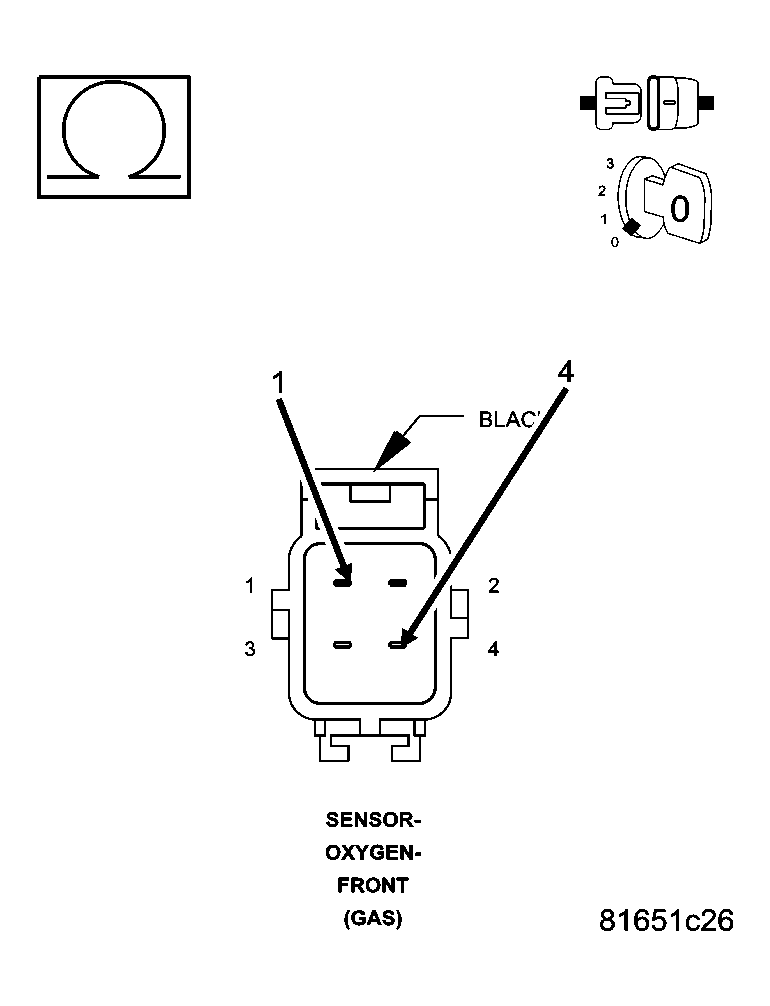

    Fig 5: Measuring Resistance Between O2 Sensor 1/1 Signal Circuit & O2 1/1 Heater Ground Circuit
    GC0041590Courtesy of CHRYSLER LLC

    Measure the resistance between the (K41) O2 Sensor 1/1 Signal circuit and the (Z902) O2 1/1Heater ground circuit in the O2 Sensor harness connector.

    Is the resistance below 100 ohms?

    Yes

    1. Repair the short between the (Z902) O2 1/1 Heater ground circuit and the (K41) O2 Sensor 1/1 Signal circuit.
    2. Perform POWERTRAIN VERIFICATION TEST .

    No

    1. Go to  8).
  8. 8) PCM
    NOTE: Before continuing, check the PCM harness connector terminals for corrosion, damage or terminal push out. Repair as necessary.

    Using the schematics as a guide, inspect the wire harness and connectors. Pay particular attention to all Power and Ground circuits.

    Were there any problems found?

    Yes

    1. Repair as necessary.
    2. Perform POWERTRAIN VERIFICATION TEST .

    No

    1. Replace and program the Powertrain Control Module per Service Information.
    2. Perform POWERTRAIN VERIFICATION TEST .
