Installation-Diesel Engine

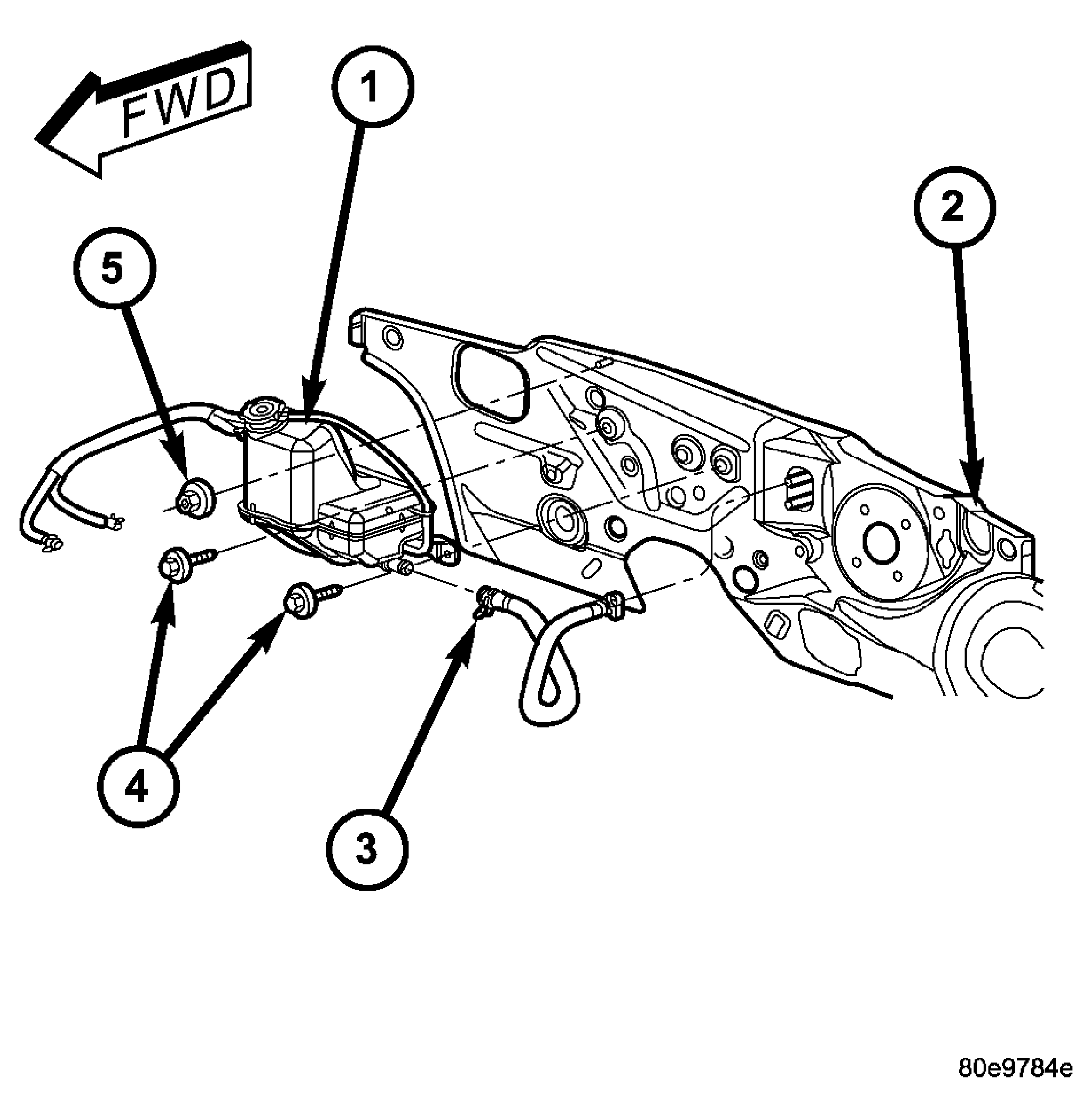

| 1 - COOLANT RECOVERY PRESSURE CONTAINER |
| 2 - DASH PANEL |
| 3 - COOLANT HOSE |
| 4 - RETAINING BOLTS |
| 5 - RETAINING NUT |
- Lower container into engine compartment and connect coolant hose (3) at bottom of container (1).
- Position container on dash panel, install fasteners (4, 5) and torque to 2-3 N.m (25-40 lbs. in.).
- Connect coolant bypass hose to coolant recovery pressure container.
- Reposition fuel filter assembly bracket and install fasteners.
- Refill cooling system. See STANDARD PROCEDURE .
- Install engine cover.
- Connect negative battery cable.
