Intake Manifold

Intake Manifold Upper-Bolts 12 Nm (105 in. lbs.)
Intake Manifold Lower-Bolts 12 Nm (105 in. lbs.)
Throttle Body Bolts 12 ±2.25 Nm (105 ±20 in. lbs.)





Intake Manifold Upper-Bolts
Position upper intake manifold on lower intake manifold.

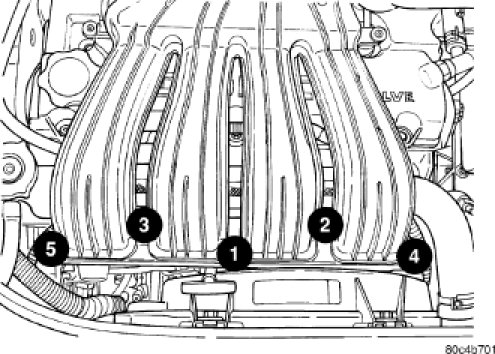

Tighten upper intake manifold fasteners to 12 Nm (105 in. lbs.) in sequence shown.





Intake Manifold Lower-Bolts
Naturally Aspirated Engine: Install lower intake manifold.

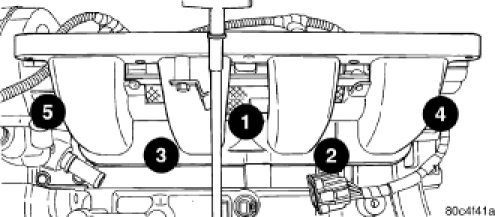

Tighten fasteners to 12 Nm (105 in. lbs.) in sequence shown.

Turbocharged Engine: Install lower intake manifold.
If equipped with an aluminum manifold, tighten fasteners to 28 Nm (250 in. lbs.) in sequence shown.

If equipped with a plastic manifold,
Tighten fasteners to 12 Nm (105 in. lbs.) in sequence shown.
