Camshaft Position Sensor: Locations

Component ID: 313
Component : SENSOR-CAMSHAFT POSITION

Connector:
Name : SENSOR-CAMSHAFT POSITION
Color :
# of pins : 3
Qualifier : (DIESEL)




Pin Description Circuit
1 CMP SENSOR GROUND K944 20BR/LG
2 CMP SIGNAL K44 20YL/GY
3 CMP 5 VOLT SUPPLY K844 20RD/VT

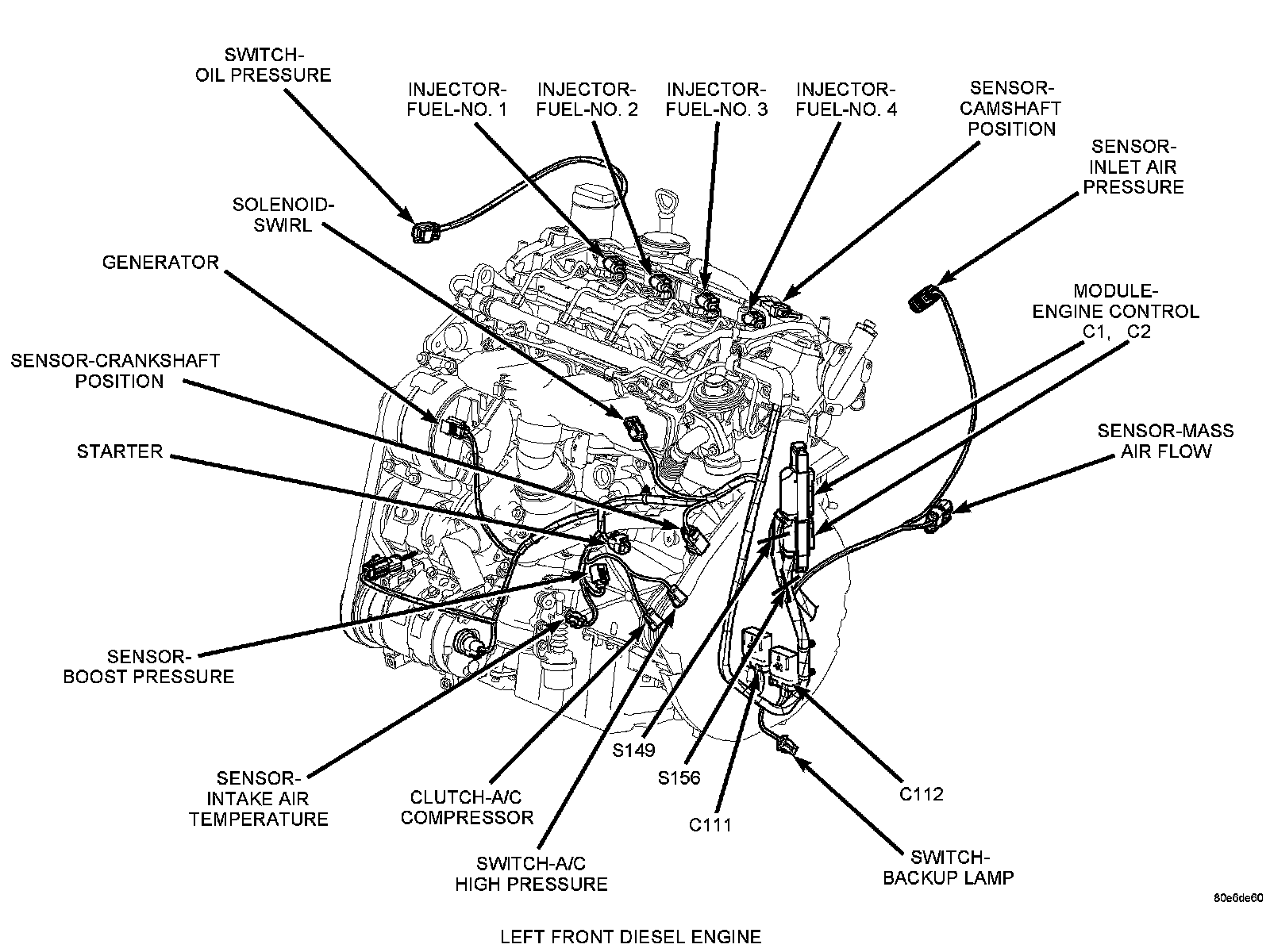

Component Location - 19




Component Location - 21




Component Location - 25




Component Location - 23






Connector:
Name : SENSOR-CAMSHAFT POSITION
Color : BLACK
# of pins : 3
Qualifier : (GAS)




Pin Description Circuit
1 CMP 5 VOLT SUPPLY K844 20GY/PK
Pin Description Circuit
1 5 VOLT SUPPLY F855 20OR
2 CMP SIGNAL K44 20TN/YL
2 SENSOR GROUND K900 20BK/LB
2 SENSOR GROUND K900 20OR
3 CMP GROUND K944 20BR/GY
3 CMP SIGNAL K44 20TN/YL

Component Location - 19




Component Location - 21




Component Location - 25




Component Location - 23
