Installation

2.0/2.4/2.4L Turbo

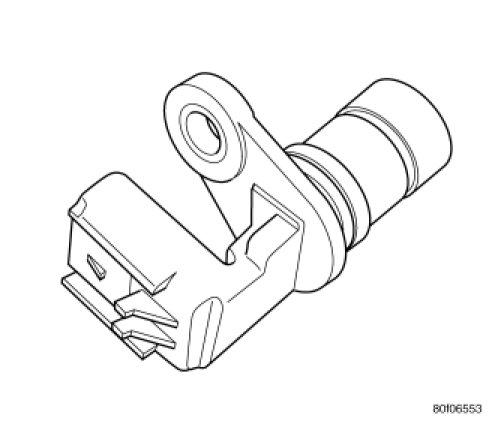

1. Check O-ring for damage and lubricate the O-ring with engine oil before installing sensor.

2. Use a twisting motion when installing the sensor.

3. Install and tighten the crankshaft position sensor bolt and tighten to 9 Nm (80 ± 15 in. lbs.).

4. Connect and lock the electrical connector to the crankshaft position sensor.

5. Lower vehicle.

6. Connect the negative battery cable.
