Removal

2.0/2.4/2.4L TURBO

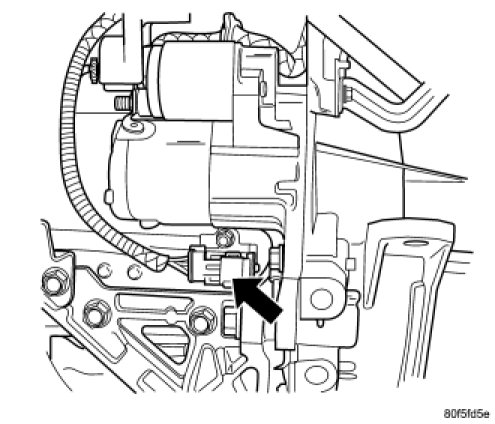

The Crankshaft Position Sensor is in the front of the engine block just under the starter motor.

1. Disconnect the negative battery cable.

2. Raise vehicle and support.




3. Unlock and disconnect the electrical connector to the crankshaft position sensor.

4. Remove the crankshaft position sensor bolt.

5. Remove the sensor.
