Installation

2.0/2.4/2.4L Turbo

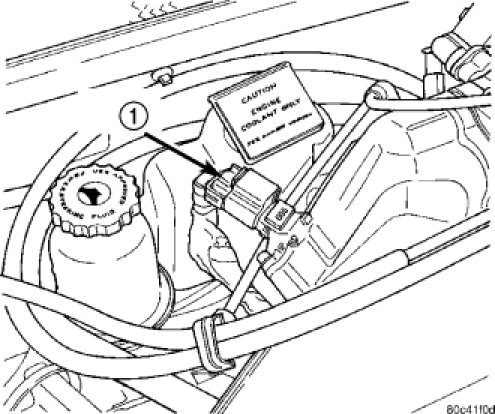

The MAP sensor attaches to the intake manifold plenum (1).

1. Insert sensor into intake manifold while making sure not to damage O-ring seal.

2. Tighten mounting screws to 2 Nm (20 in. lbs) torque for plastic manifold.

3. Attach electrical connector to sensor.

4. Install the negative battery cable.

5. Install the air cleaner lid and makeup air hose.
