Circuit Schematic

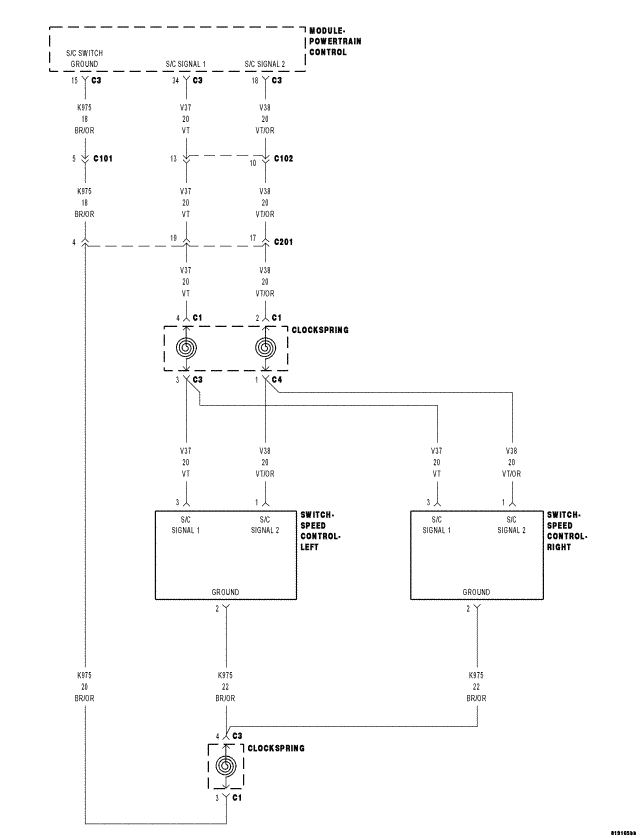

Fig 1: Speed Control Switch Circuit Schematic

GC0049630

Courtesy of CHRYSLER LLC
