DTCS P0645 To P1653
>>
P1653-J1850 Comm Code Low
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

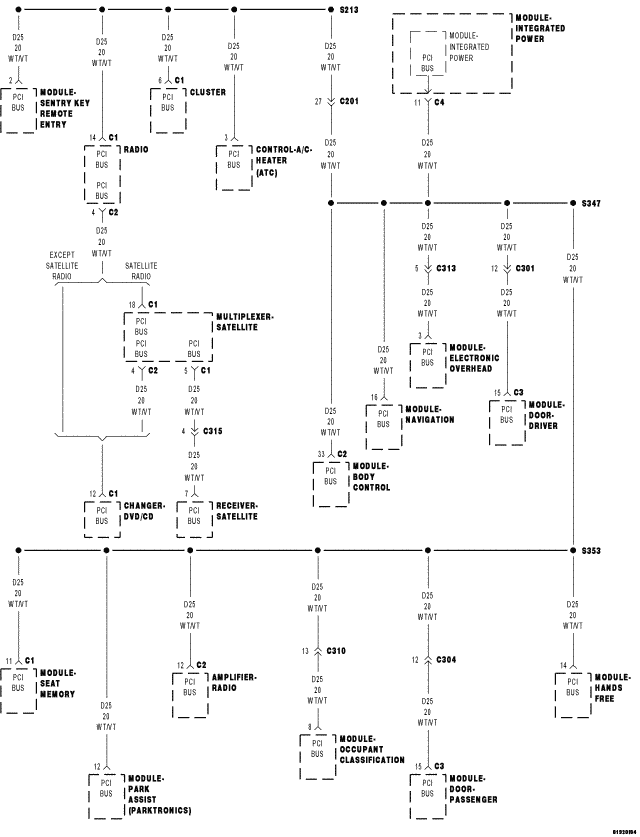

Fig 1: COMM Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
