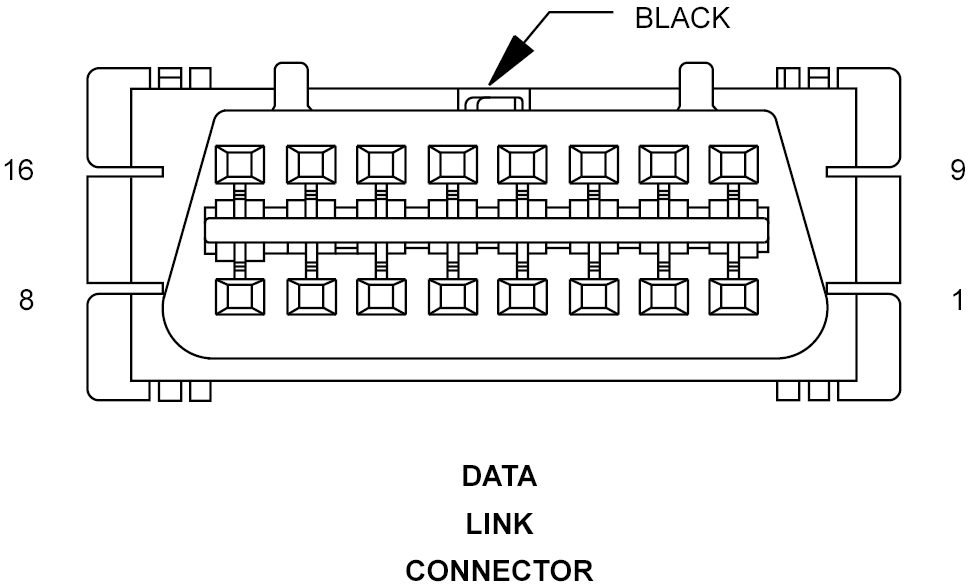

Data Link Connector, Connector End View
DATA LINK CONNECTOR - BLACK 16-WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | D65 20WT/LG | CAN C BUS (+) |
| 2 | D25 20WT/VT | PCI BUS |
| 3 | D55 20WT/OR | CAN B BUS (+) |
| 4 | Z11 18BK/LG | GROUND |
| 5 | Z111 18BK/WT | GROUND |
| 6 | D72 20WT/LB | DIAGNOSTIC CAN C (+) |
| 7 | - | - |
| 8 | - | - |
| 9 | - | - |
| 10 | - | - |
| 11 | D54 20WT | CAN B BUS (-) |
| 12 | - | - |
| 13 | D64 20WT/LB | CAN C BUS (-) |
| 14 | D71 20WT/DB | DIAGNOSTIC CAN C (-) |
| 15 | - | - |
| 16 | A105 20DB/RD | FUSED B(+) |
